Through Hole Slip Ring
BYTUNE offers multiple through-hole slip ring models with different inner bore diameters from 3mm to 200+mm ,enabling easy integration with various shaft sizes, pipes, or rotary structures. Whether the application requires a compact hollow shaft or a large central bore for combined mechanical and fluid transmission, BYTUNE provides suitable options…
And for each model we have different versions basing on different wires, power and signal, furthermore，we could do optimization on standard model to increase the working speed,IP grade, temperature etc, our solution is very flexible for your different applications!
What Makes Our Through Hole Slip Rings Special
- Advanced multi-point contact brush technology ensures reliable contact with low friction.
- Metal housing for better protection.
- Integrated structure design, easy installation.
- Hole size from 3mm to 300mm optional.
- Rated Speed: 300~5,000RPM.
- Standard Current: 0~20A.
- Standard Voltage: 0~600VAC/VDC.
- Circuits No.: 0~300 circuits optional.
- Working temperature: -40℃～+100℃
- IP Ratings: Higher protection level, up to IP68
- Ethernet compatible, or hybrid with electrical and pneumatic channels.
- Wire Colors: Multi colors optional, like black, red, yellow, green, blue, and white.
- Additionals: Any special features like waterproof, anti-seismic, and Impact resistant.
Customizations acceptable for hole size, channel, load options, body lengths, circuit no., current& voltage, and rated speed, etc. based on standard models!
ByTune Standard Through Hole Slip Rings
|
Model |
Picture |
ID |
OD |
Length |
Rings |
Current |
Voltage |
Rated Speed |
|
|
3mm |
18mm |
12-20mm |
≤8 |
2A, |
380VAC/DC 600VAC/DC optional |
300RPM |
|
|
|
4mm |
22mm |
20-27mm |
≤12 |
2A, |
380VAC/DC 600VAC/DC optional |
300RPM |
|
|
|
9mm |
32mm |
28~50mm |
≤20 |
2A or higher |
≤ 380V |
300rpm |
|
|
|
10mm |
24mm |
28.4~57.2mm |
≤24 |
2A |
≤380V |
300rpm |
|
|
|
12.7mm |
35mm |
24~72mm |
≤24 |
2A |
380VAC/DC 600VAC/DC optional |
500RPM |
|
|
|
12.7mm |
56mm |
(mm) 2A/5A: 20+2.3×No.rings 10A: 20+2.8×No.rings 20A/15A: 20+3.8×No.rings |
≤48 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
1000RPM |
|
|
|
13mm |
64mm |
(mm) 5A: 20+2.3×A 10A: 20+2.8×A 15A:20+3.8×A |
|
5A, 10A, 15A, 20A or combined rings to get higher current |
380V,600V optional |
1000rpm |
|
|
|
25.4mm |
86mm |
(mm) 2A/5A: 24.15+3.15×No.rings 10A: 24.15+3.85×No.rings 20A/15A: 24.15+4.65×No.rings |
≤72 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
1000RPM |
|
|
|
33mm |
92mm |
mm 5A : 24.15+3.35×A 10: 24.15+4.05×A 15/20A: 24.15+4.85×A |
≤72 |
5A, 10A ,20A, 30A or higher |
≤380V, 600V optional |
1000RPM |
|
|
|
35mm |
91mm |
15+4.5×A |
≤72 |
5A, 10A ,15A, 20A or higher |
240V, 380V, 600V optional |
1000RPM |
|
|
|
38mm |
99m |
(mm) 2A/5A: 24.15+3.35×No.rings 10A: 24.15+4.05×No.rings 20A/15A: 24.15+4.85×No.rings |
≤72 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
1000RPM |
|
|
|
50mm |
120mm |
(mm) 2A/5A: 30.2+3.3×No.rings 10A: 30.2+4×No.rings 20A/15A: 30.2+4.8×No.rings |
≤72 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
1000RPM |
|
|
|
60mm |
130mm |
(mm) 2A/5A: 30.2+3.3×No.rings 10A: 30.2+4×No.rings 20A/15A: 30.2+4.8×No.rings |
≤96 |
2A |
380VAC/DC 600VAC/DC optional |
500RPM |
|
|
|
|
70mm |
155mm |
(mm) 2A/5A: 32.8+3.3×No.rings 10A~20A: 30.2+4.8×No.rings |
≤96 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
500RPM |
|
|
80mm |
160mm |
(mm) 2A/5A: 34.8+3.3×No.rings 10A~20A: 34.2+4.8×No.rings |
≤120 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
500RPM |
|
|
|
96mm |
185mm |
(mm) 40+5×No.rings |
≤120 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
500RPM |
|
|
|
106mm |
168mm |
(mm) 42+3×No of rings |
|
5A, 10A, 15A, 20A or combined rings to get higher current |
≤380V, 600V optional |
|
|
|
|
120mm |
210mm |
(mm) 49+6×No.rings |
≤120 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
500RPM |
|
|
BTH135230 |
|
135mm |
230mm |
(mm) 52+6×No.rings |
≤120 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
500RPM |
|
|
150mm |
250mm |
(mm) 60+6×No.rings |
≤120 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
500RPM |
|
|
|
190mm |
340mm |
(mm) 65+6×No.rings |
≤120 |
5A, 10A, 15A, 20A |
380VAC/DC 600VAC/DC optional |
500RPM |
|
|
|
3-500mm |
|
as request |
300 |
≤600A |
380VAC/DC 600VAC/DC optional |
≤5, 000RPM |
Featured Through Hole Slip Rings
-
![ISDN And Ethernet Slip Ring For Military Application]()
BTH3899-0440-01E-01I-10SISDN And Ethernet Slip Ring For Military ApplicationHigh powerread more
ISDN with Ethernet
Probus / CANbus data -
![Gigabit Ethernet Slip Ring]()
BTH60130-0320-01E -
![Lager Through Hole Slip Ring]()
BTH106168Lager Through Hole Slip Ring● ID 106mm, OD 168mmread more
● Multi-channels, reliable shielding
● For wind energy, drilling, mining equipments etc... -
![Through Bore Slip Ring With Specified Dimension]()
BTH3591Through Bore Slip Ring With Specified Dimension● ID 35mm, OD 91mmread more
● High power, high temperature
● For food machines, packing machines, etc... -
![Through Hole Slip Ring For Satellite Antenna]()
BTH3392Through Hole Slip Ring For Satellite Antenna● ID 33mm, OD 92mmread more
● 30A power and signal, with connectors
● For antenna, wind turbine, rotating platform, etc -
![Gigabit Ethernet Through Hole Slip Ring]()
BTH1364Gigabit Ethernet Through Hole Slip Ring● ID 13mm, OD 64mmread more
● Dimension as per required, power and signal
● For aerospace, detector, lab auto-equipement, etc -
![Miniature Slip Ring With Through Bore]()
BTH1024Miniature Slip Ring With Through Bore● ID 10mm, OD 24mm, 2Aread more
● Power or signal, miniature inner hole
● For medical equipments, intelligent hardware, etc... -
![Small Through Hole Slip Ring For Precise Instrument]()
BTH0932Small Through Hole Slip Ring For Precise Instrument● ID 9 mm, OD 32mmread more
● Transfer sensitive signal
● For ultrasonic probe, precise instruments, etc...
Custom Through Hole Slip Rings
At ByTune, we work closely with our partners to design custom slip ring solutions tailored to you. Whether you need specialized signal transmission, specific parameters, extreme dimensions, or reliable performance in challenging environments, our R&D team meets your requirements.
Discuss Your application With Us
Application Highlights
Through hole slip ring for Wrapper Machine
- BTH2586
- ID 25.4mm, OD 86mm
- 24 channels
- 10A & 5A
- 1000rpm
- IP 65
Features: Wires with tube protection; 2~3 Meters wire length
Get A Custom QuoteThrough hole slip ring for Ferris Wheels
- BTH60130-0320
- ID 60mm, OD 130mm
- 3 channels, 20A
- Sheathed cable with 3 cores
- 3 Meters wire length
- IP65
Features: Specified color, Sheathed cable with IP65 for waterproof
Get A Custom QuoteThrough hole slip ring for Crane
- BTH1256-1810
- ID 12.7mm, OD 56mm
- 12 or 18 channels
- 10A
- 300rpm
- IP 65
Features: Water proof, 12+ channels , Long wire length such as 3 meters
Get A Custom QuoteCustom Slip Ring for Mateiral Handling
- BTH3899-1210
- ID 38.1mm, OD 99mm
- 12+ channels
- 10A with some channels for signal
- 300rpm
- IP 54
Features: Long life-span, Compatible with sensitive control signal, Sometimes several slip rings mounted on one machine
Get A Custom Quote
Why Choose ByTune As Your Through Hole Slip Ring Manufacturer
We have 27 years of experience in manufacturing standard and customized slip rings. By cooperating with us, you will benefit from our proven expertise, innovative designs, and reliable solutions.
Our Advantages
- Near 30 years experience.
- Senior engineering team.
- Flexible solution with competitive price.
- After-service guaranteed.
- Powerful successful cases with famous companies.

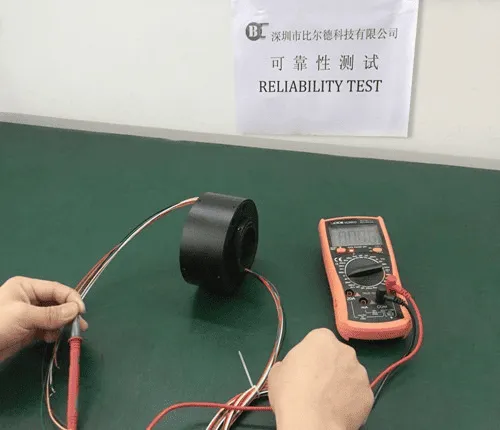

Guaranteed Quality
- Quality control from raw materials.
- 100% test before packing.
- Certified with ISO9001, SGS, CE, FCC, RoHs, GJB9001A.
- We make many quality tests (SEM on ring's contact surface, dynamic resistance change detection, signal transfer interference test, etc.) for your assurance.
We strictly follow quality standards:
Vibration Standards: MIL-STD-810G
Shock Standards: MIL-STD-810G
EMI&EMC Standards: MIL-STD-461F
Stable Supply
- 3 slip ring production lines, and 2 factories
- In-house CNC machining for perfect slip ring components
- Complete automated slip ring assembly line
- Slip rings are supplied to 120+ countries
Fast Delivery
- Response within 8 hours
- Standard samples in 1 week
- Batch shipment in 2 weeks with forecast
- Shipment by flight, 3~5 days door to door
- Full-process cargo tracking
- Free replacement within 3 weeks for quality issues
-
How many types of slip rings do you have?We can provide various types of slip rings, such as through hole slip rings, separate slip rings, capsule rings, pancake slip rings, pneumatic slip rings, mercury slip rings, carbon brush slip rings, welding current transmission devices and custom slip rings, etc.
-
How long is the delivery time of slip rings?We deliver slip ring samples in 1 week, bulk orders in 2-4 weeks, and custom solutions in 4-8 weeks.
-
How soon of the quote for a customized slip ring?The cost of custom slip rings depends on the design complexity of the slip rings, the choice of materials and the order quantity. ByTune ensures service response within 24 hours and will provide a detailed quote after assessment.
-
What are the key parameters in slip ring customization?Electrical parameters: Circuits, Rated current/voltage, Signal type, Data Transmission Rate. Mechanical parameters: Hole size, IP Rating, Operating Speed, Operating Temperature/Humidity, Anti-Seismic/Impact Resistance Requirements, Installation Method.
-
Can you offer OEM or ODM solutions?Yes, we offer OEM&ODM solutions.
