The through hole slip ring for satellite antenna is a high-power and signal transmission solution specifically designed for satellite communication systems. Its through-hole structure facilitates cable routing, while the military-grade connectors enable its quick integration into 360° continuous rotation equipment such as satellite antennas, wind turbines, and rotating platforms. Additionally, this slip ring supports 30A high-current power transmission and multi-channel synchronous signal transmission, ensuring stable and reliable transmission even in extreme environments.
Features
multiple signal transmissions
The through hole slip ring for satellite antenna is compatible with 24 and multi-channel, and can transmit multiple independent signals at the same time. This includes electrical signals, optical signals, digital signals and analog signals.
01
anti-interference ability
It uses an insulating sealing structure and a multi-layer shielding design to prevent the leakage of internal signals of the slip ring and external electromagnetic interference.
02
Maintenance-free
Its components are designed with dynamic balancing to make the force distribution uniform. During the rotation of the conductive ring, the pressure between them is always kept within the appropriate range to reduce poor contact.
03
High transmission rate
Its conductive rings and brushes are made of highly conductive materials such as copper alloys, carbon graphite and precious metals. These materials can maintain good contact and high transmission rates over long periods of use.
04

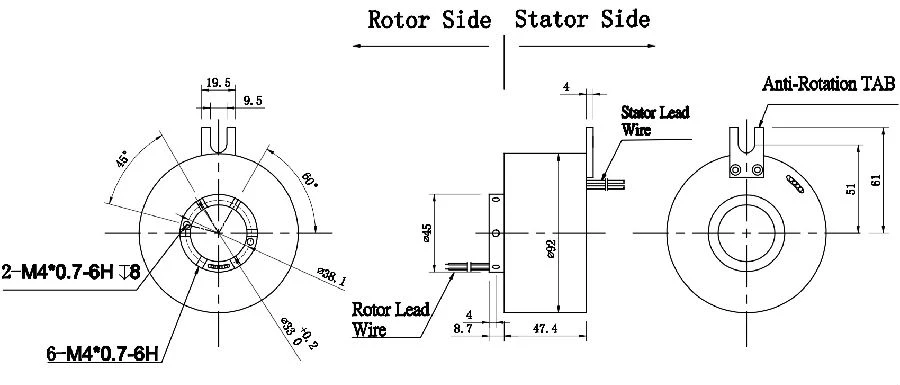

Drawing
Parameters
Mechanical
|
ID/OD |
33mm/92mm or as your specific requirements |
|
Working speed |
1000rpm |
|
Operating temperature |
-40℃~ +100℃ |
|
Contact material |
gold or silver plating or as your specific requirements |
|
IP Grade |
IP 54 or higher |
|
Housing material |
metal or plastic |
Electrical
|
Circuit |
3,4,6,12,18,24 or as your requirements |
|
Current |
5A,10A ,20A,30A or higher |
|
Voltage |
≤380V,600V optional |
|
Dielectric strength |
≥1000V@50Hz between each circuit |
|
Insulation resistance |
1000MΩ@ 500VDC |
|
Electric noise |
≤7mΩ |
|
Lead wire size |
22AWG, 17AWG,14AWG,UL, color Teflon, silver or tin plated |
|
Lead wire length |
300mm or as your requirements |
Critical Dimension
|
Model |
Length "L" |
||||
|
Current |
Formula (A means No. of ring) |
6 circuits |
12 circuits |
18circuits |
|
|
BTH3392 |
2A/5A |
24.15+3.35×A |
44.25mm |
64.35mm |
84.45mm |
|
10A |
24.15+4.05×A |
48.45mm |
72.75mm |
97.05mm |
|
|
15A/20A |
24.15+4.85×A |
53.25mm |
82.35mm |
111.45mm |
|

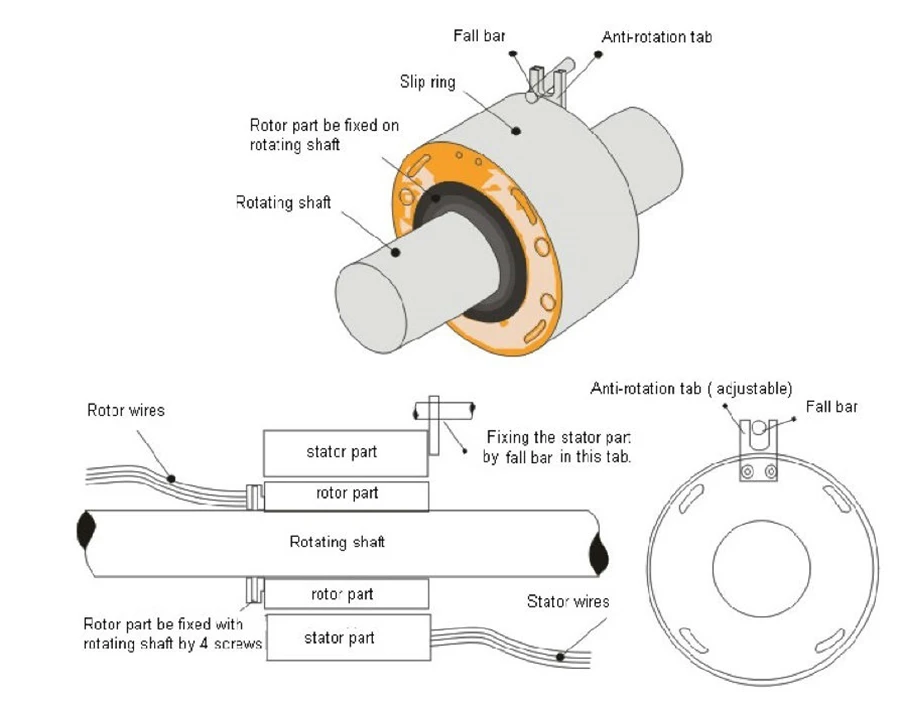

Installation guide
Application Scenarios
Our through hole slip ring for satellite antenna is widely used in various fields, the following are its main ones:
Remotely Operated Vehicles (ROVs)
Cable Reel
CT Scanner
Antenna
Diving Marine Instruments
Logging
