The high power slip ring with good heat dispersion supports currents up to 600A along with signal transmission. Its high-conductivity metal contacts and enlarged contact area ensure even current density distribution, minimizing heat buildup and preventing short circuits. This design makes it widely used for high-current applications, particularly in welding, oil, and gas systems.
Drawing (mM)
Parameters
Mechanical:
|
Working speed |
30rpm |
|
Operating temperature |
-40℃~ +100℃ |
|
Contact material |
Precious metal |
|
IP Grade |
NA |
Electrical:
|
Circuit |
2 or 3 /600A, 12 /30A |
|
Current |
600A, 30A |
|
Voltage |
380V for 30A, 80V for 600A |
|
Dielectric strength |
≥1000V@50Hz between each circuit |
|
Insulation resistance |
1000MΩ@ 500VDC |
|
Electric noise |
≤7mΩ |
|
Lead wire size |
Metal pins and 14AWG,UL, color Teflon, silver or tin plated |
|
Lead wire length |
300mm |
Application
The high power slip ring with good heat dispersion is designed to handle high-current loads efficiently, including:
Heavy Industrial Machinery
- * Cranes and lifts
- * Excavators and mining equipment
- * Steel mills and foundries
Marine and Offshore Applications
* Ship Propulsion Systems
* Offshore Oil and Gas Platforms
Heavy Equipment and Vehicles
* Military Vehicles:
* Construction Equipment
Industrial Automation
* Rotary Tables and Indexers
* Robotics
Entertainment and Stage Equipment
* Amusement Rides
* Stage Lighting and Effects
Railway and Transportation
*Train and Tram Systems
FAQ
How to quote if I have a product number?
If you have a product number, please let us know, and we'll give you an accurate quote based on specifications, cost, and market conditions.
What payment methods do you accept?
- Samples: PayPal or Western Union
- Regular orders: TT (Bank Transfer)
Can slip rings be customized? Does it affect delivery time?
Yes, we offer customization (size, signal type, current, sealing, etc.). Standard orders take 2–3 weeks, while custom orders may take longer depending on complexity.

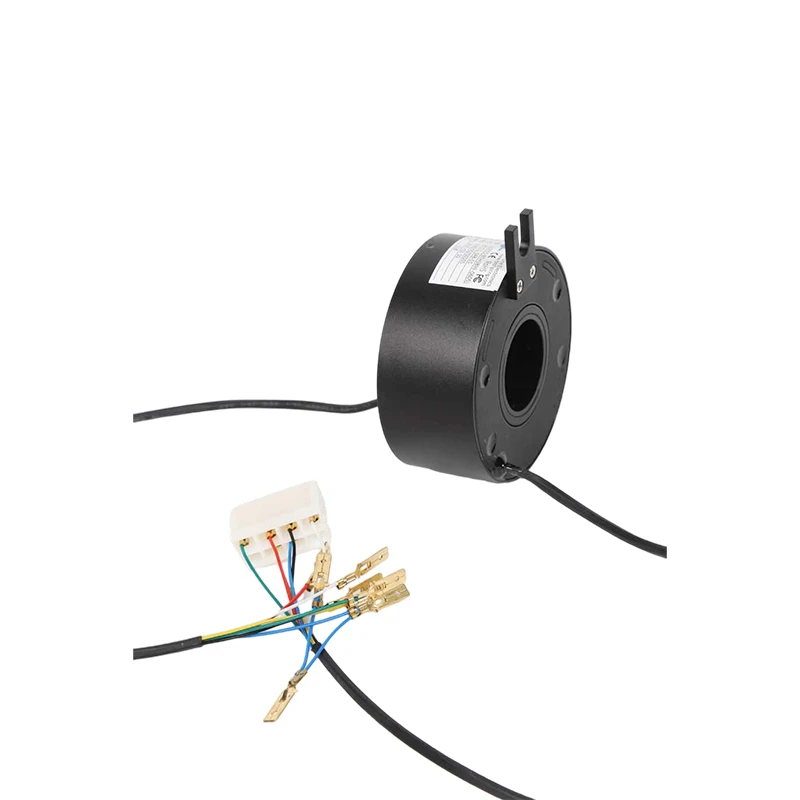

Hot Tags: bthp-03600-1230, China bthp-03600-1230 manufacturers, suppliers, factory, Miniature Through Hole Slip Ring, Long Life Span Standard Through Hole Slip Ring, High Speed Standard Through Hole Slip Ring, Through Hole Slip Ring For Satellite Antenna, Small Through Hole Slip Ring, Anti-vibration Through Bore Slip Ring
