Aerospace and Defense Slip Rings
-Custom Power, Signal, Data, RF, and Fiber Optic Rotary Transmission Solutions
ByTune slip ring solutions can be configured for compact installation, lightweight structure, low electrical noise, EMI protection, vibration resistance, and hybrid integration in mission-critical aerospace and defense applications.
Whether your system is used in radar antennas, EO/IR gimbals, UAV payloads, satellite-related mechanisms, aircraft systems, or defense rotating platforms, ByTune can help develop a rotary transmission solution based on your electrical, mechanical, signal, and environmental requirements.
Slip Ring Solutions for Mission-Critical Aerospace and Defense Systems
Aerospace and defense rotating systems often operate under demanding conditions. These systems may face limited installation space, vibration, shock, temperature changes, electromagnetic interference, high signal requirements, and strict reliability expectations.
ByTune provides project-specific slip ring designs for aerospace and defense equipment. Our solutions can integrate power, signal, data, RF, fiber optic, and hybrid channels into one compact rotary assembly, helping engineers simplify system integration while maintaining reliable rotary transmission.
- Low electrical noise transmission
- EMI and EMC protection
- Vibration and shock resistance
- RF and fiber optic integration
Aerospace and Defense Slip Ring Applications
Aerospace and defense equipment may require continuous 360° rotation, limited-angle rotation, or high-reliability signal transfer between stationary and rotating parts. ByTune slip rings can be customized for different rotating platforms, payload systems, testing equipment, and communication systems.
Radar Antenna Systems
ByTune can design radar slip rings with separated power and signal circuits, RF coaxial channels, shielding structure, and low-noise contact design to support stable operation in rotating antenna platforms.
EO/IR Gimbals And Electro-Optical Payloads
ByTune slip rings can support HD video, Ethernet, CAN bus, RS485, USB, encoder signals, and power circuits in compact and low-torque designs suitable for electro-optical payload systems.
UAV And Drone Payload Systems
ByTune can customize compact slip rings for UAV gimbals, mapping systems, surveillance payloads, communication modules, and rotating sensor platforms.
Aircraft And Helicopter Systems
ByTune can provide custom slip rings with aviation connectors, shielded cables, compact housing, and project-specific electrical configurations to meet different aircraft and helicopter system requirements.
Satellite And Space Mechanisms
ByTune supports custom slip ring development for satellite-related and aerospace test applications. Slip ring structure, circuit configuration, signal type, connector design, and mechanical interface can be designed according to project requirements.
Defense Vehicle And Rotating Platform Systems
ByTune can customize robust slip rings for defense-related rotating platforms with power, signal, Ethernet, video, RF, and hybrid transmission options.
SATCOM And Communication Antenna Systems
ByTune can customize slip rings with RF coaxial channels, Ethernet transmission, encoder feedback, and shielded signal circuits for rotating communication antennas and satellite communication platforms.
Aerospace And Defense Test Equipment
ByTune can design slip rings for high-channel-count transmission, sensor signal stability, high-speed data acquisition, and mixed power-signal integration in demanding test environments.
Transmission Options for Aerospace and Defense Slip Rings
Different aerospace and defense systems require different transmission combinations. Some systems only need power and control signals, while others require high-speed data, RF signals, video, fiber optics, or hybrid media transmission.
ByTune can customize slip rings with power circuits, signal channels, data lines, RF coaxial channels, fiber optic rotary joints, and hybrid media channels based on the electrical, mechanical, and environmental requirements of each project.
| Transmission Type | Typical Applications |
| Power | Motors, heaters, sensors, payload modules, control units |
| Control Signal | Command signals, switching signals, control circuits |
| Ethernet | Radar systems, UAV payloads, EO/IR systems, data communication |
| CAN Bus / RS485 | Control systems, sensors, communication modules |
| USB / HD Video | Cameras, imaging systems, inspection payloads |
| Encoder Signal | Position feedback, rotating platform control |
| RF / Coaxial | Radar, antenna, SATCOM, RF communication |
| Fiber Optic | High-speed data, long-distance signal transmission, EMI-sensitive systems |
| Pneumatic / Fluid Hybrid | Cooling, pressure, hydraulic, or special media transmission when required |
By combining multiple transmission types into one rotary assembly, ByTune helps engineers reduce installation complexity, save space, and improve system integration efficiency.
Key Design Considerations for Aerospace and Defense Slip Rings
Selecting a slip ring for aerospace and defense applications requires careful evaluation of the full system environment. Electrical performance, signal stability, mechanical structure, shielding, size, weight, vibration, and connector design should all be considered during the design stage.
Compact and Lightweight Structure
Aircraft, UAV, satellite-related mechanisms, and gimbal systems often have strict space and weight limitations. The slip ring must fit into the available installation space without increasing system weight or affecting rotation performance.
ByTune can customize the slip ring outer diameter, length, bore size, housing material, cable outlet direction, and mounting interface to fit compact aerospace and defense equipment.
Low Electrical Noise for Sensitive Signals
Sensitive signals such as video, encoder feedback, sensor data, Ethernet, and control signals require stable contact performance and low electrical noise. If the slip ring contact system is not properly designed, signal distortion, data errors, image noise, or communication instability may occur.
ByTune can optimize contact materials, circuit layout, shielding, and signal separation to help maintain reliable transmission during rotation.
EMI Protection and Signal Separation
Aerospace and defense systems often contain motors, RF modules, power circuits, communication equipment, and sensitive sensors in a limited space. These components may generate electromagnetic interference that affects signal quality.
Proper shielding, grounding, cable routing, and separation between power and signal channels help reduce interference and improve signal integrity.
Vibration and Shock Resistant Design
Rotating systems installed on aircraft, UAVs, vehicles, or mobile platforms may face vibration and shock during operation. Slip ring structure, bearings, housing, contact system, cable fixation, and connector selection should be designed according to the mechanical environment of the application.
ByTune can customize the mechanical structure of aerospace and defense slip rings based on installation conditions and operating requirements.

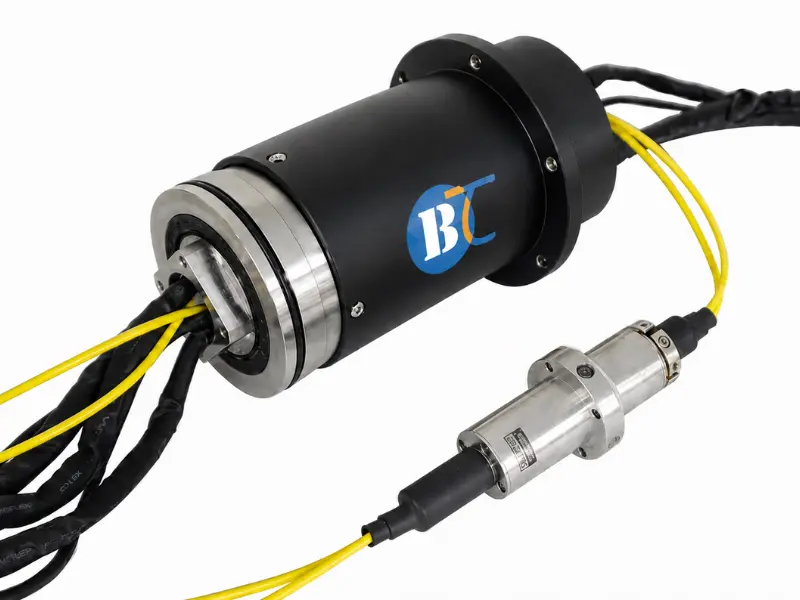

RF and Fiber Optic Integration
For radar, antenna, EO/IR, communication, and high-bandwidth payload systems, a standard electrical slip ring may not be enough. Some applications require RF coaxial transmission, fiber optic transmission, or both.
ByTune can integrate RF coaxial channels or fiber optic rotary joints with electrical slip rings to create compact hybrid rotary transmission assemblies.

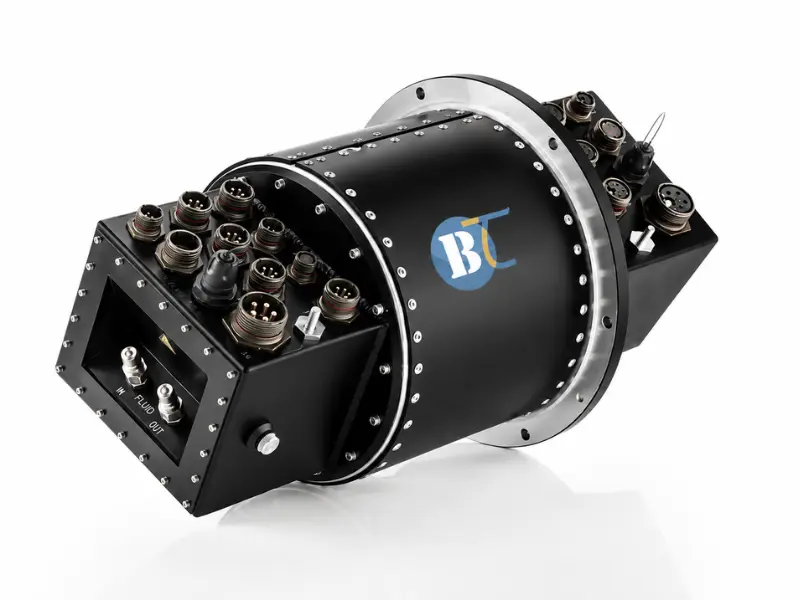

Custom Connectors, Cables, and Mounting Interfaces
Aerospace and defense projects often require specific connectors(D38999/24WD35PN,CA3100E22-22SB-15), shielding methods, cable lengths, cable outlet directions, flanges, mounting holes, and housing structures. A standard slip ring may not match the installation requirements of the final system.
ByTune supports custom mechanical and electrical interfaces to simplify installation and improve system integration.
Custom Aerospace and Defense Slip Ring Solutions from ByTune
ByTune provides custom slip ring solutions for aerospace and defense-related rotating systems. Instead of offering only standard models, we work with engineers to define the electrical circuits, signal types, data rate, rotation speed, installation space, environmental conditions, connector type, and mechanical interface required for each project.
Our slip rings can combine power, signal, Ethernet, CAN bus, RS485, USB, HD video, encoder signals, RF coaxial channels, fiber optic rotary joints, pneumatic channels, or fluid channels into one integrated rotary transmission system.
Custom Engineering Support
Every aerospace and defense project has different requirements. ByTune provides electrical and mechanical design support based on your system structure, circuit definition, signal type, installation space, and operating environment.
We can help evaluate:
Circuit number/Voltage and current/Signal type/Data rate/RF or fiber optic requirements/Rotation speed/Available installation space/Cable and connector design/Mounting interface/Environmental conditions/
Hybrid Transmission Capability
Many aerospace and defense systems require more than one transmission type. ByTune can integrate power, signal, data, RF, fiber optic, gas, or fluid channels into one compact assembly.
This helps reduce separate components and simplifies the design of rotating platforms, radar systems, UAV payloads, gimbals, and test equipment.
Compact Integration
For UAVs, gimbals, aircraft systems, radar antennas, and satellite-related mechanisms, space is often limited. ByTune can customize compact slip rings based on outer diameter, length, through-hole size, cable direction, connector position, and mounting method.
The goal is to provide reliable rotary transmission while helping engineers save space and simplify installation.
Reliable Signal Performance
Aerospace and defense systems may include sensitive signal channels such as Ethernet, encoder feedback, video, RF, sensor signals, and fiber optics. ByTune can optimize the internal circuit arrangement, shielding, contact structure, and cable design to support stable signal transmission during rotation.
For complex signal requirements, our team can help evaluate the best configuration before production.
Why Choose ByTune for Aerospace and Defense Slip Rings
Aerospace and defense projects often require a balance between electrical performance, mechanical integration, signal stability, and long-term reliability. ByTune supports custom slip ring development from requirement analysis to design, prototyping, testing, and production.
Custom Design
ByTune slip rings are configured according to your circuit number, signal type, current, voltage, speed, size, connector, and installation requirements.
Instead of forcing a standard model into a complex system, we help customize the slip ring according to the real application environment.
Multi-Signal Integration
ByTune supports power, control signal, Ethernet, CAN bus, RS485, USB, video, RF, fiber optic, and hybrid transmission.
This makes it possible to combine multiple channels into one rotary assembly for radar antennas, UAV payloads, EO/IR gimbals, aircraft systems, satellite-related mechanisms, and defense rotating platforms.
Engineering Communication
Our team helps evaluate signal interference, shielding, cable routing, mechanical structure, and installation feasibility.
Before production, we can discuss your application requirements, wiring definition, mounting structure, rotation method, connector preference, and environmental conditions to reduce design risk.
Flexible Manufacturing
ByTune supports prototypes, small batches, and project-based custom production. Whether you are developing a new aerospace-related rotating system or upgrading an existing defense platform, we can provide slip ring solutions based on your project stage and technical requirements.
FAQ About Aerospace and Defense Slip Rings
Q: What Is An Aerospace And Defense Slip Ring?
A: An aerospace and defense slip ring is a rotary transmission device used to transfer power, signals, data, RF, video, or fiber optic signals between stationary and rotating parts in aircraft, radar, UAV, satellite, EO/IR, and defense-related systems.
Q: What Signals Can An Aerospace And Defense Slip Ring Transmit?
A: Depending on the design, it can transmit power, control signals, sensor signals, Ethernet, CAN bus, RS485, USB, HD video, encoder signals, RF coaxial signals, and fiber optic signals. Hybrid designs can also integrate pneumatic or fluid channels.
Q: Can RF Rotary Joints Be Integrated With Slip Rings?
A: Yes. RF coaxial rotary joints can be integrated with electrical slip rings for radar, antenna, SATCOM, communication, and RF signal transmission applications.
Q: Can Fiber Optic Rotary Joints Be Used In Aerospace And Defense Slip Rings?
A: Yes. Fiber optic rotary joints can be integrated when the system requires high-speed data transmission, EMI immunity, long-distance signal transmission, or optical communication through a rotating interface.
Q: What Should Engineers Consider When Selecting An Aerospace Slip Ring?
A: Important factors include voltage, current, circuit number, signal type, data rate, RF frequency, rotation speed, size, weight, connector type, shielding, vibration, shock, temperature range, and installation structure.
Q: Are Aerospace And Defense Slip Rings Usually Custom-Made?
A: Yes. Many aerospace and defense slip rings require custom design because each system has different electrical, signal, mechanical, environmental, and installation requirements.
Q: Can ByTune Provide Compact Slip Rings For UAV Or Gimbal Systems?
A: Yes. ByTune can customize compact, lightweight, and low-torque slip rings for UAV payloads, EO/IR gimbals, camera systems, and rotating sensor platforms.
Q: Can One Slip Ring Integrate Power, Ethernet, RF, And Fiber Optic Channels?
A: Yes. ByTune can design hybrid slip rings that combine power circuits, signal channels, Ethernet, RF coaxial channels, and fiber optic rotary joints in one integrated rotary assembly according to project requirements.
Q: How Can I Start A Custom Aerospace And Defense Slip Ring Project?
A: You can send us your application details, circuit requirements, signal types, rotation speed, installation space, connector preference, and operating environment. Our engineers will review the requirements and recommend a suitable slip ring design direction.
Need a Custom Aerospace and Defense Slip Ring?
Tell us your application, circuit requirements, signal types, rotation speed, installation space, connector preference, and operating environment. ByTune engineers can help you design a suitable slip ring solution for your aerospace, radar, UAV, satellite, or defense rotating system.
Whether you need a compact slip ring for a UAV gimbal, a hybrid slip ring for a radar antenna, an RF and fiber optic integrated solution, or a custom rotary transmission system for aerospace test equipment, ByTune can provide project-specific engineering support.
