An encoder signal can cross a slip ring only if the complete rotating electrical path preserves the electrical interface and the position information the controller needs. For incremental A/B/Z feedback, that means receiving legitimate edges in the correct order without missing or adding counts. For SSI and BiSS-C absolute encoders, it means delivering the master's clock and the encoder's response with acceptable timing, signal quality and valid frame interpretation during motion.
There is no universal "encoder-compatible" circuit specification. Before choosing a slip ring, identify which equipment is stationary, which is rotating, the exact encoder output, the receiver, the cables and connectors, and the motion profile. Then define an acceptance test for the position signal-not merely a continuity check. This guide gives OEM engineers a practical way to perform that design review.
First decide whether the encoder needs to cross a rotating interface
The fact that an axis rotates does not automatically mean its encoder cable must rotate with it. A common arrangement keeps an encoder readhead or output connector on the stationary machine structure while the encoder scale, ring or shaft rotates. In that architecture, the feedback wiring may stay entirely on the stationary side. Adding a slip ring to an encoder channel that does not cross the mechanical boundary adds avoidable complexity.
A slip ring becomes relevant when the encoder electronics or another signal-producing device rotates with a platform, test spindle, turret or gimbal while the receiving controller remains stationary; it may also be needed if a stationary sensor must communicate with electronics on a continuously rotating assembly. For limited-angle motion, a properly designed cable loop or flexible harness may be preferable. The choice depends on the true relative motion and cable life, not on a marketing label.
Draw the boundary before counting rings. A useful connection sketch names the fixed controller, rotating encoder, slip-ring interface, both cable assemblies, the encoder supply and return, the mechanical rotation axis, the shaft/bore envelope, and any neighboring power circuits. If the encoder signal never crosses the line, its signal channels should not be included in the slip-ring requirement.
Map the complete encoder interface, not just the number of wires
"Six encoder wires" is not a complete specification. Those conductors may be a single-ended A/B/Z encoder with supply and reference, a differential incremental encoder without an index, or a clocked absolute interface with a different topology. The same conductor count can require very different electrical behavior.
| Review item | What the engineering team must record | Why it matters |
|---|---|---|
| Device location | Encoder side and controller side of the rotary boundary | Confirms whether a slip ring is needed at all |
| Output interface | Single-ended incremental, differential A/B/Z, SSI, exact BiSS-C implementation or another interface | Determines receiver type, channel allocation and test method |
| Signal channels | Each individual wire or differential pair; optional index, alarm, enable or preset lines | Avoids treating pair members or optional lines as spare circuits |
| Power and reference | Encoder supply range, consumption, return conductor and allowable voltage at the device | Contact and cable voltage drop can affect the device even when signal channels appear intact |
| Physical path | Driver, receiver, cable type and length on both sides, connectors, differential termination and shields | The installed link is more than the ring body |
| Motion | Speed, acceleration, reversals, indexing, dwell, total operating time | Failure signatures often depend on dynamic rather than static conditions |
| Acceptance | Missed/extra counts, position disagreement, frame errors, CRC/status flags and required test duration | Provides measurable evidence of correct feedback |
Any shielding strategy must be defined with the complete machine's grounding and bonding arrangement. Do not assume a cable shield is a signal return conductor or that it automatically constitutes a suitable spare rotating channel. If the rotating assembly also carries motor power, heater power or switching I/O, record which of those loads operate simultaneously with the encoder.
Incremental A/B/Z: preserve phase, edges and the reference mark
An incremental quadrature encoder produces two position-related signals, commonly A and B, with a phase relationship used to infer direction. A third channel, Z or index, may provide a reference mark. Digital encoders can output differential A+/A− and B+/B− pairs, with an optional Z+/Z− pair, but single-ended, analog sin/cos and other output formats also exist. The encoder datasheet determines which format is present. Renishaw's encoder explanations distinguish quadrature output and incremental referencing, while its RS-422 encoder documentation provides a concrete differential-output and termination example.
For a differential A/B/Z device, three signal pairs mean six individual signal conductors before accounting for encoder supply, 0 V, and any additional device-specific functions. An encoder without Z needs fewer signal paths; another encoder might require alarm or setup lines. Never copy a six-channel allocation from one system to another without confirming the actual pinout and shield/return topology.
Check the edge rate against the entire link
For an encoder specified in cycles per revolution (often called PPR, although vendors may use that abbreviation differently), the nominal cycle frequency on an A channel is:
A-channel cycles per second = cycles per revolution × shaft RPM / 60.
With four-edge quadrature decoding, the controller may process four count transitions per A/B cycle. For example, a hypothetical 1,000-cycle-per-revolution encoder at 1,800 RPM produces 30,000 A-channel cycles per second and potentially 120,000 decoded transitions per second. These figures are a calculation example, not a ByTune rating or the permitted limit of a particular slip ring.
That calculation helps determine the receiver's event rate. It does not substitute for checking signal rise/fall time, allowable cable loading, impedance, termination, pair skew, noise margin and the encoder manufacturer's output stage. Even at a modest shaft speed, a high-resolution encoder can generate fast electrical transitions.
How an incremental link can report the wrong position
A short disturbance on A or B can look like an extra transition, suppress a legitimate edge, or momentarily reverse the interpreted phase order. The controller can then accumulate a position error even if the signal looks normal again after the disturbance. A lost Z mark can also prevent a valid reference event; a spurious Z can produce an incorrect reference. These are different symptoms and should be logged separately.
For validation, compare the decoded position with an independent position reference or a known repeatable mechanical movement. Checking only the count returned by the suspect encoder against itself cannot reveal all missing-count events. If possible, capture A, B and Z at the receiver terminals while logging speed, direction and an independent angle/time reference.
SSI: treat clock and data as a timed two-way path
An SSI absolute encoder is typically read by a stationary master that sends a clock to the encoder and receives serial position data in return. Many implementations use differential clock and data pairs. The master must be configured for the selected encoder's clock frequency, frame length, coding (for example binary or Gray code), turnaround/pause requirements and any optional status or error bits. These parameters are not interchangeable across products. Beckhoff's SSI principles describe master-driven clocking, frame transmission and device-specific settings.
When the encoder rotates, both the outbound clock path and the returning data path may cross the slip ring. The risk is not only an open circuit. Added cable and connection delay, asymmetric path behavior, degraded edges, crosstalk and rotation-related interruptions can reduce the sampling margin at the master. The approved maximum clock rate must be established for the complete installed path, including the specific encoder, master, stationary and rotating cables, connectors and rotary interface.
SSI should not automatically be described as CRC-protected. Some systems provide parity, status bits or device-specific diagnostics, while others rely on different mechanisms. The controller configuration and encoder manual determine what is available. Beckhoff's SSI master configuration, for example, treats CRC and status-bit handling explicitly rather than assuming every SSI frame includes the same diagnostics.
During testing, log position data together with any supported frame or status diagnostics. If no frame-integrity field is available, use an independent reference and application-specific plausibility checks; an apparently plausible position word alone does not prove that every transmission was correct.
BiSS-C: verify the actual protocol frame and its error evidence
BiSS-C should be specified by its exact configuration, not abbreviated to "BiSS signal." In a point-to-point arrangement, the BiSS-C master sends a clock on the MA path and receives the slave's data on the SLO path. The protocol can also involve control communication and configuration-dependent frame content. The official BiSS Interface downloads provide the current protocol description, profiles, master implementation guidance and CRC application notes.
A BiSS-C installation therefore requires the encoder and master to agree on clocking, sensor data length, status/error fields, CRC definition, initialization and supported operating mode. The controller should report meaningful transmission faults rather than merely continuing to display the last valid position without an alarm. Whether that fallback is acceptable is a machine-control decision.
For a rotating link, validate the MA and SLO signal paths separately where measurements permit. Record the configured clock rate, actual wiring, measured or logged frame validity, CRC errors, status flags, and position behavior through starts, reversals and critical shaft angles. CRC success verifies the configured frame integrity check; it does not by itself establish mechanical position accuracy or full system safety. A functional-safety requirement needs its own certified architecture and evidence.
Design the physical link around the encoder, receiver and electrical environment
Two rotary interfaces with equal circuit counts can behave differently with the same encoder. Signal performance depends on more than continuity: differential geometry, cable and connector choices, impedance where applicable, termination, contact stability, routing, return paths, shielding and nearby electrical aggressors all matter.
| Design decision | Practical requirement | Risk if ignored |
|---|---|---|
| Differential-pair assignment | Keep each complementary pair identifiable end to end and confirm the rotary path against the driver/receiver electrical requirements | Skew, degraded common-mode rejection or failed termination review |
| Encoder supply at load | Measure voltage at the encoder under representative consumption during rotation | Intermittent resets or output-stage undervoltage masked by an acceptable supply reading at the controller |
| Cable and connectors | Specify total installed length, pin mapping, strain relief, shield continuity and termination | A bench-tested ring fails after a longer cable or different plug is installed |
| Motor-power proximity | Identify PWM/VFD/servo circuits and define separation, routing, reference and shielding strategy | Feedback errors appear during switching or acceleration |
| Mechanical envelope | Record shaft/bore, outside diameter, axial length, mounting, cable exit and permitted rotating torque | The electrical design fits on paper but cannot be installed without cable stress |
| Motion and environment | Qualify speed, reversals, vibration, temperature and relevant contamination | Stationary acceptance fails to predict production operation |

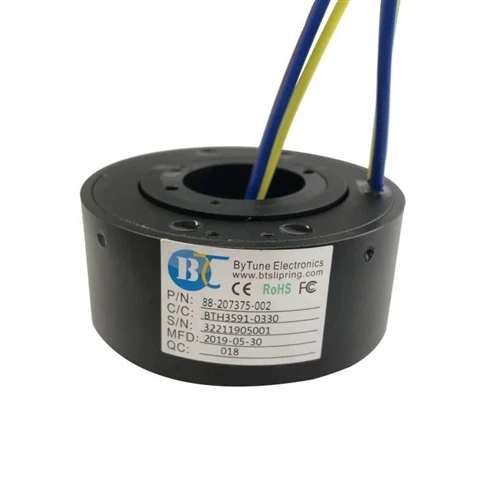

A through-hole or through-bore configuration may make sense when the machine requires a central shaft or passage, but mechanical shape is not proof of encoder-interface compatibility. Review ByTune's through-hole product family for installation architecture, and specify exact signals through a verified model or project-level engineering review. Product-family descriptions are not substitutes for a qualified BiSS-C, SSI or A/B/Z design.
Use symptom-specific tests before blaming the slip ring
Because the encoder, controller and rotary connection operate as one chain, a count jump is not proof of a faulty contact. Reproduce the symptom while changing one condition at a time. Existing generic diagnostic guidance, including ByTune's electrical-noise diagnosis guide, helps separate contact variation, EMI, crosstalk and grounding problems; the table below applies that logic specifically to encoder feedback.
| Observed feedback problem | Competing explanations | Discriminating check |
|---|---|---|
| A/B count changes when the shaft should be stationary | Electrical interference, threshold noise, grounding or encoder output fault | Capture A/B at receiver; compare motor-drive on/off and inspect receiver thresholds |
| Count loss repeats at one shaft angle | Position-related contact/cable movement, connector strain or localized mechanical issue | Time-align waveform, angle and cable movement over repeated revolutions |
| Wrong direction or intermittent reversals | A/B wiring swap, transition-order corruption or receiver configuration | Verify phase order during controlled known-direction motion |
| Index mark absent or duplicated | Reference-wire error, encoder reference issue or transient interference | Capture Z together with A/B and independent once-per-turn reference |
| SSI position glitches after higher clock setting | Timing margin, cable length, signal quality or device configuration mismatch | Compare approved clock settings and readback at fixed mechanical positions |
| BiSS-C CRC/status faults under rotation | Signal integrity, incorrect frame setup or physical-path instability | Log error counters and MA/SLO waveforms with speed, angle and power-load state |
| Several channels fail when the servo drive switches | Common supply, reference path or EMI, not necessarily individual contact faults | Repeat controlled motor/VFD off/on tests without changing multiple variables |
Do not disconnect protective grounds as an ad hoc noise experiment. Changes to shielding or bonding should follow the approved electrical design and safety requirements. The test should also distinguish a contact-path fault from a damaged or badly routed cable external to the slip ring.
Build a dynamic encoder acceptance test before design freeze
The proof of a successful link is that the installed encoder system meets the machine's positional and diagnostic requirements while operating. A static resistance value is useful for component inspection, but it cannot establish correct phase, clock timing or frame interpretation. ByTune's static-versus-dynamic contact-resistance guide explains that separate measurement boundary.
Freeze the tested configuration first: encoder model and output type, master/receiver firmware and settings, slip-ring configuration, cable/connector lengths, pair mapping, supply, shield terminations, neighboring power channels, mounting, temperature and motion sequence. Keep these identifiers in the test report. Replacing a cable or changing a clock setting creates a new configuration that may need renewed checks.
| Test state | Incremental A/B/Z evidence | SSI evidence | BiSS-C evidence |
|---|---|---|---|
| Stationary, powered baseline | Clean A/B states, correct Z logic and power at device | Stable position and valid selected frame configuration | Valid data/status and configured CRC interpretation |
| Controlled reference movement | Counts and direction agree with independent known motion | Position change agrees with independent reference | Position and status agree with reference |
| Low-speed and normal-speed rotation | No unexpected count differences or index faults | No invalid readbacks or unacceptable position disagreement | No unacceptable CRC/status events or position disagreement |
| Highest specified normal speed | Receiver captures required edge rate with acceptable margin | Position reads meet agreed timing and validity limits | Frames meet configured timing, validity and error limits |
| Acceleration, reversal and indexing | Direction transitions and reference events remain correct | No unacceptable discontinuity outside expected motion | No unacceptable fault event or discontinuity |
| Nearby power circuits active | Compare count and waveform with switching drive off/on | Compare data faults and electrical margin | Compare CRC/status counters and electrical margin |
| Thermally stabilized operation | Repeat reference and count checks | Repeat readback and timing checks | Repeat frame/error monitoring |
| Representative endurance interval | Trend cumulative errors and index consistency | Trend invalid frames and position agreement | Trend CRC/status faults and position agreement |
Choose acceptance values from the control system's risk and accuracy budget: allowed position discrepancy, error-event count, maximum readback latency or jitter, test duration and required motion conditions. There is no defensible universal "zero noise at any speed" promise. For intermittent faults, log timestamps and shaft position so a rare repeatable event is not hidden by a long-term average.
Incremental encoders need an external reference or a defined known movement for credible count verification. SSI and BiSS-C systems should be compared with an independent position reference as well as their available communication diagnostics. Data validity and true mechanical accuracy are related but different acceptance questions.
Specify the rotary interface so the supplier can evaluate it
When the proof-of-concept works on a short cable but the production assembly has a longer rotating harness, different connectors and adjacent motor circuits, the final configuration-not the original bench setup-is what needs acceptance. A productive engineering inquiry includes the electrical interface and its test limits, not just "encoder slip ring, eight circuits."
| RFQ / design-review field | Minimum information to provide |
|---|---|
| Encoder system | Device manufacturer/model, exact output interface, voltage and current, encoder/receiver manuals |
| Incremental outputs | Single-ended or differential; A/B/Z and optional lines; cycles/rev and max edge rate; receiver and termination |
| SSI parameters | Clock rate and permitted timing range, frame width, Gray/binary coding, pause requirement and optional status diagnostics |
| BiSS-C parameters | Exact mode/profile, MA/SLO implementation, clocking, frame/CRC/status configuration and master/encoder compatibility |
| Complete rotating path | Stationary and rotating sides, cables, connectors, shield/return topology, channel map and other circuits |
| Motion and mechanics | Continuous/indexing movement, operating/max RPM, reversals, center bore, OD/length limits, mounting, cable strain relief |
| Environment | Temperature, dust/water exposure, vibration and other relevant conditions |
| Acceptance criteria | Count/position limits, allowable frame or CRC/status events, clock/timing limits, load combinations and test duration |
Use the ByTune custom slip ring page as the commercial next step when a standard configuration has not been verified for the required interface. The engineering team should confirm actual capability and acceptance evidence for the chosen assembly; no specific ByTune model, encoder protocol rating or measured error performance is asserted by this article.
Engineering decision: establish whether the encoder signal crosses the rotating boundary; specify its actual electrical interface; preserve the complete physical channel; and accept the assembly only against a dynamic test matched to A/B/Z, SSI or BiSS-C. That is the difference between a conductive path that merely rotates and a rotary connection that reliably delivers position feedback.
