A rotary machine may have a perfectly adequate slip ring for 24 V power, yet still experience valve-command faults, controller resets or unexplained sensor errors when a solenoid switches off. The cause may not be a defective rotary contact. An inductive coil stores energy while energized. When the drive interrupts current, that energy must travel through an intentional recirculation or clamping path. If the electrical architecture is poorly defined, the resulting voltage transient can stress electronics or couple into neighboring signals.
Passing solenoid-coil power through a slip ring is therefore not just a matter of assigning two conductive channels and checking their steady-state current ratings. Engineers must identify the stationary and rotating sides, driver location, supply and return paths, suppression method, coil-release requirement, and dynamic electrical acceptance test. The protection circuit must be compatible with the actual driver; some output stages already manage inductive current internally.
This article provides a design-review and commissioning method for ordinary industrial solenoid and relay coils used on rotating fixtures, packaging equipment, automation tables and similar machines. It does not claim that any unspecified ByTune model has passed a particular transient, PWM, valve-response or EMC test. The exact slip ring assembly, cable, coil and driver must be evaluated together.

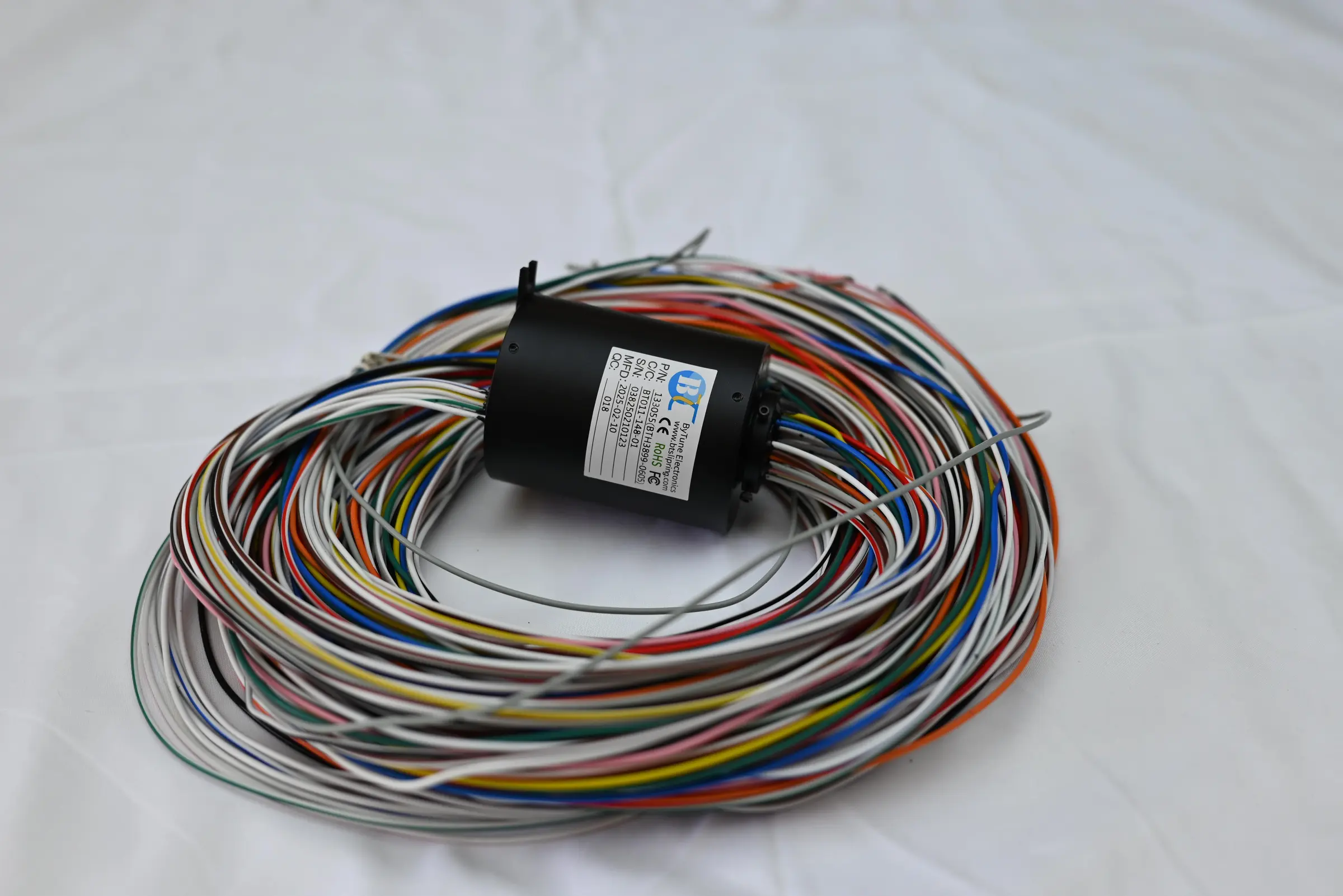

Draw the whole coil-current path across the rotating boundary
Begin with the physical location of the solenoid. A valve mounted on the rotating table needs electrical connections that follow the rotating platform, while a PLC or output module may remain in a stationary cabinet. The rotary interface commonly transfers the coil supply and the associated return or switched conductor. The correct topology depends on whether the driver is a low-side switch, high-side switch, half bridge or another approved configuration.
The same machine may carry position sensors, encoder feedback, Ethernet and additional power circuits through the same slip ring. Record each service separately. A diagram containing only the words "power + signal" cannot reveal whether the coil's return current shares a reference conductor with a low-level sensor, whether shield terminations are continuous, or which side of the rotary interface contains the suppression component.
| Path or component | Information to identify | Reason |
|---|---|---|
| Stationary source and controller | Supply range, driver topology, output protection and current limit | Determines allowed load and transient behavior |
| Slip-ring feed and return | Specific circuit IDs, rated continuous current, lead and terminal arrangement | Prevents shared or unspecified current paths |
| Rotating load | Coil part number, nominal supply, DC resistance, inductance, actuation and release requirements | Defines energy and timing that protection must handle |
| Suppressor or clamp | Physical location, polarity, clamp method and driver compatibility | Defines where stored energy goes after switch-off |
| Neighboring signals | Signal interfaces, return references, shielding and physical separation | Defines susceptibility to conducted or coupled interference |
| Motion and environment | Speed, reversals, vibration, temperature, switching frequency and duty cycle | Defines the real installed acceptance condition |
Where the rotating assembly already includes a driver module, the slip ring may carry its DC supply and digital command signal instead of switching the coil current directly across the interface. This can change the transients seen at individual rotary circuits, but it introduces a rotating electronic module with its own power, grounding, packaging and temperature requirements. Neither architecture should be treated as automatically superior.
What happens when the coil turns off?
An energized inductor resists a sudden change in current. In a simplified coil model, the terminal voltage relates to the current-change rate through V = L × di/dt. When the switching device opens the ordinary current path, the coil's stored magnetic energy must be dissipated or recovered through another path. If no adequate path exists, an excessive transient may stress the driver, insulation or surrounding circuitry.
The stored energy at a particular current is E = ½ × L × I². Consider a hypothetical 120 mH coil energized to 0.7 A. The magnetic energy is 0.5 × 0.12 × 0.7² = 0.0294 J, or approximately 29 mJ. This is an engineering arithmetic example, not a ByTune or solenoid product measurement. The driver and suppression network must tolerate the relevant energy and repeated switching conditions, but a simple energy number does not establish allowable voltage, waveform shape or response time.
For this reason, the Texas Instruments guidance on driving inductive factory-automation loads distinguishes suppression across a switch, clamping across a load and freewheeling current through a diode. These circuits can behave differently when the driver turns off. An external diode cannot be prescribed without checking the output module's design.
The slip ring itself is not intended to act as an electrical switch. Its function is to maintain a path while the mechanical joint rotates. A transient imposed on that path can affect the conductors, terminations, contacts and adjacent electronics, but it does not mean the sliding interface should be deliberately used to interrupt inductive current.
Locate suppression in the actual circuit, not in a generic diagram
In a conventional DC coil arrangement, an approved suppressor located near the coil can provide a local path for inductive discharge and may reduce the length of wiring exposed to a high-energy switching event. However, suppression topology depends on the output stage and the desired current-decay profile. A high-side driver, a low-side driver and a bidirectional or intelligent half bridge are not interchangeable.
In particular, NI documents an output module whose integrated switching architecture manages inductive load current without a separate external flyback diode. Adding a component on the assumption that every solenoid needs the same diode can therefore conflict with the intended drive behavior. For any new design, start from the exact controller and coil manuals.
| Protection approach | Potential effect | Design question |
|---|---|---|
| Freewheel diode across a DC coil | Limits the reverse voltage and generally allows a slower current decay | Does the resulting mechanical release time meet the machine requirement? |
| Higher-voltage controlled clamp | Can allow faster demagnetization at a higher controlled voltage | Are switch, coil, insulation and other connected parts rated for the clamped waveform? |
| Protection integrated into a smart driver | May manage recirculation, clamp energy or fault behavior internally | What external components, if any, does the driver manufacturer actually permit? |
| Driver relocated to rotating side | Changes which circuits cross the rotary interface and where transient currents circulate | Can the rotating module satisfy power, cooling, safety and command-interface requirements? |
| Unverified suppression or no specified path | Unknown transient level and uncertain switching behavior | Hold the design until the full discharge path is demonstrated |
There is no universal best suppression position or clamp voltage. In one approved controller, an integrated clamp can be sufficient; another design may specify a coil-mounted suppression module. Document exactly where the current returns during energization, PWM regulation and switch-off. Where the current path crosses a slip ring during switching, evaluate the consequence at the rotating contacts and on the stationary and rotating cables.
Flyback protection changes how quickly a valve releases
Preventing voltage spikes is necessary, but it is not the entire user task. A solenoid valve may also have a defined de-energization or release-time requirement. A conventional diode can extend coil-current decay, which may delay the valve reaching its mechanically released position. A higher-voltage clamp can accelerate current decay, but increases the voltage stress that protection devices and connected electronics must withstand.
This trade-off is documented in TI's application discussion of inductive-load switching. It matters on rotating process equipment where air, vacuum or product-handling sequences rely on a timed valve response. A machine that passes a static continuity test may still be functionally unacceptable if the valve releases too slowly when commanded.
Define both an electrical metric and a physical outcome: for example, measured coil-current decay versus time, and valve de-energization or actuator response under the actual operating pressure and mechanical load. Do not infer mechanical response time from current alone. Different coil and valve designs can have different magnetic and mechanical delays. A timing requirement associated with protective or safety functions must be checked by the machine safety design rather than guessed from an oscilloscope trace.
A useful design review asks: what is the acceptable switch-off voltage, how quickly must coil current decay, what driver is permitted, and what happens if the rotary connection becomes intermittent? If those requirements are unspecified, the team cannot objectively compare a freewheel diode with a controlled clamp.
Calculate electrical headroom using the complete rotary power path
A slip-ring circuit has some end-to-end resistance because the path includes contact regions, conductors, connectors and terminals. At the coil's energizing current, the supply available at the rotating load is lower than the voltage available at the source by the total path drop. This is especially important when a coil requires a minimum pickup voltage or a driver uses current regulation.
As a purely hypothetical example, suppose a stationary supply is 24.0 V, the coil needs at least 21.0 V at its input to satisfy the design's pickup requirement, and the rest of the system allows only 3.0 V total drop. The 3.0 V budget must cover both rotary conductors, terminal and cable losses, the drive output's voltage drop, and other series elements. It cannot automatically be assigned entirely to the slip ring. If a measured path drop is 0.8 V under load and the driver drops another 1.2 V, the remaining headroom is 1.0 V for additional losses and variation. These numbers illustrate the budgeting method, not a ByTune rating.
| Budget item | Illustrative value | What must be verified in practice |
|---|---|---|
| Stationary DC supply | 24.0 V | Minimum supply under simultaneous machine loading |
| Required coil terminal voltage | At least 21.0 V | Specific valve/coil manufacturer's pickup requirement |
| Total available voltage-drop budget | 3.0 V | Correct sum of drive, conductors, contacts and connectors |
| Measured two-way conductor/contact/terminal drop | 0.8 V | At actual coil current, temperature and rotation |
| Drive output drop | 1.2 V | At the actual driver operating point |
| Remaining voltage headroom | 1.0 V | Variation, tolerance and operating margin |
Continuous coil current, startup behavior and PWM peak current may differ. Confirm the actual current waveform before assigning a power-channel load rating. Higher switching frequency can also change conductor heating, controller behavior and noise coupling. If several valves operate together, evaluate the concurrent load condition rather than a single coil on the bench.
Decide whether PWM is part of the design
Some valve drivers apply a high initial current to actuate a coil, then reduce current through pulse-width modulation or another hold-current strategy. This changes the waveform in the slip-ring feed and return path. A DC continuity test cannot demonstrate whether the real switching edges, ripple and return currents will coexist with adjacent signal channels.
The current and switching method should be described by the driver specification rather than an assumed fixed percentage duty cycle. The current decay between pulses depends on the driver's active or passive recirculation arrangement. A simple clamp choice that appears harmless for occasional on/off operation can change current ripple, average heating or release behavior under PWM.
For the rotary interface, record the PWM switching frequency if applicable, commanded duty or current profile, peak and RMS current, simultaneous neighboring loads, and the actual suppression or driver architecture. Measure the result with equipment and probes rated for the circuit. The test should include the signal channels that the machine uses while solenoids operate, because a switching-induced disturbance can appear as an encoder count error or sensor glitch without an obvious coil malfunction.
The purpose of this test is not to prove a generic property called "supports PWM." It is to verify a specific electrical waveform and its effect on the relevant system signals under rotation.
Keep returns, shields and ground functions explicit
A common wiring error is to allocate a conductor to each switched output but leave the return path ambiguous. Return currents still require an intentional circuit. Do not silently share a low-level sensor reference with large, fast-changing coil currents. Depending on the driver and the system grounding architecture, that coupling may appear as a common-mode disturbance, measurement error or communication fault.
Separate protective bonding, supply return, signal reference and shield termination in the design documents. A protective-earth path is not an interchangeable substitute for a normal operating-current return. Nor should a shield be assumed capable of carrying coil current. The connector and cable drawings should show both stationary and rotating terminations, not only color-coded wire ends.
For a customized assembly, place high-current or switching circuits and sensitive signal circuits according to the validated channel architecture. The article Power and Data Slip Rings: Avoid Signal Loss explains the broader channel-separation issue, while the electrical-noise diagnostic guide provides a different workflow for faults that persist after the coil topology is established. This page focuses on defining and validating the inductive-load circuit itself.
Three places to measure when a valve fault appears
The most useful diagnostic comparison is not "before slip ring" versus "after slip ring" alone. Record the drive command and three distinct electrical regions: the stationary output, the rotary path as installed, and the coil terminals on the rotating side. This makes it possible to separate driver behavior from cable/contact drop and from the local coil transient.
| Observation point | What to capture | What it helps isolate |
|---|---|---|
| P1 - controller output | Command, output voltage/current and protective clamp operation | Driver switching sequence, current limit and intended decay mode |
| P2 - stationary-to-rotating circuit | Loaded voltage drop, motion-synchronized disturbances and return behavior | Slip-ring path or external connection losses |
| P3 - coil terminals | Energizing voltage, turn-off clamp waveform and current decay | Actual coil stress, suppression performance and power delivered to load |
| Machine outcome | Valve or actuator actuation/release time and error signals | Whether the electrical design achieves its process requirement |
Do not connect a conventional grounded oscilloscope probe across arbitrary power nodes. The measurement method must suit the circuit's voltage, grounding and fault-energy conditions. Qualified personnel should use appropriate isolated or differential measurement techniques when needed, in accordance with instrument and machine safety instructions. Identify exactly which points are measured and do not allow test leads near rotating hazards.
Compare a stationary trace and a rotating trace at the same coil demand. Then repeat with the relevant neighboring power and signal circuits active. Include rotation speed, direction, time base, acquisition bandwidth, temperature and observed event counts. An isolated spike on a measurement display may be a probe-ground artifact; reproduce any important event with a suitable setup before attributing it to the slip ring.
Dynamic validation matrix for solenoid-coil power
Testing should cover the conditions where electrical behavior and mechanical motion interact. A slip ring may pass a continuity check at rest while a valve command fails during reversal, high-current operation or sustained heat. Acceptance must therefore be end-to-end and tied to the coil and driver requirements.
| Operating condition | Measure or observe | Approval criterion |
|---|---|---|
| Static, no neighboring loads | Wiring map, coil terminal voltage, actuation and release | Matches the approved controller and valve specifications |
| Continuous rotation | Current, voltage drop, waveform disturbance and functional cycling | No unacceptable circuit or process errors |
| Indexing and reversal | Coil switching during starts, stops and direction changes | Required command timing and mechanical response preserved |
| Simultaneous loads | Several valves, power channels and nearby signals active | Supply and receiver behavior remain within defined limits |
| Warm operating state | Supply, contact/terminal temperatures, coil resistance and release time | Acceptable performance at the specified operating temperature |
| Fault and recovery tests | Driver protection reporting, safe machine behavior, permitted restart sequence | Matches approved functional and safety requirements |
A meaningful result includes the actual coil part number and controller output type, not just "24 V valve tested." For a current-regulated driver, specify how current set points were measured. For a freewheel diode or clamp, include release behavior. For an Ethernet or encoder channel adjacent to the load, log its own error metrics during the same operating profile. An isolated scope trace cannot replace the process result.
No universal number of revolutions or fixed temperature-rise threshold can certify all designs. Establish those limits from the specific machine duty, selected slip ring, cable and terminal design, and acceptance plan. If the load is safety-related, the responsible safety engineering process must decide how coil de-energization and fault response are verified.
Distinguish a transient fault from contact failure
When a controller reports intermittent valve faults, avoid treating every symptom as contact noise. A coil's switch-off voltage spike is not the same phenomenon as a momentary resistance change at a brush or ring. The two can occur together, but they require different evidence and corrective actions.
| Symptom | Likely areas to investigate | Useful controlled comparison |
|---|---|---|
| Fault only when a valve turns off | Discharge/clamp topology, wiring loop or driver settings | Same load at rest and in motion, identical scope settings |
| Fault only while the shaft rotates | Contact variation, cable strain, angle-dependent connection or EMI | Motion trace with valve held steadily energized and then cycled |
| Valve releases too slowly | Protection method, coil/valve mechanical response or controller release profile | Current decay and actual valve position/pressure event |
| Sensor readings jump when multiple valves actuate | Shared supply/return, conducted interference or crosstalk | One coil versus concurrent loads with matching ground scheme |
| Pickup becomes unreliable when warm | Supply headroom, coil winding resistance and terminal drop | Measure coil terminal voltage and current at operating temperature |
| Repeated driver protection trips | Clamp energy, overcurrent, short or incorrect output configuration | Review driver fault logs and validate current waveform safely |
If external cables, connectors or the load are damaged, isolate and repair them according to the approved machine procedure. If dynamic contact instability is suspected, use a defined contact-resistance and waveform test instead of interpreting the solenoid transient as an absolute slip-ring resistance value.
Specify the custom interface with an inductive-load acceptance plan
A supplier needs more than the number of circuits and a list of coil voltages. Specify the driver and coil architecture, circuit paths, protective devices, simultaneous load behavior and acceptance test. This helps determine whether a standard assembly is suitable or whether the project requires a modified or custom configuration.
| RFQ field | Required project information | Why the supplier needs it |
|---|---|---|
| Rotary architecture | What is stationary, what rotates, location of driver and coils | Defines feed, return and mounting responsibilities |
| Coil requirements | Part number, nominal/allowed voltage, pickup/hold current, actuation/release timing | Defines functional load rather than a generic 24 V label |
| Switching | High-side/low-side/bridge driver, on/off or PWM, cycle frequency and duty | Defines waveform and electrical stress |
| Suppression | Manufacturer-approved diode, clamp or integrated protection and its location | Defines discharge path and allowable transient |
| Other channels | Adjacent motor, sensor, encoder and communications circuits; grounding/shields | Defines separation and simultaneous testing |
| Mechanical/environment | Available bore/OD/length, RPM, reversals, leads, connectors, vibration and temperature | Defines integration and real operating duty |
| Acceptance | Coil terminal waveform, current decay, voltage drop, actuation time, signal errors | Provides objective pass/fail evidence |
When the design cannot be verified with an existing assembly, submit the complete electrical and mechanical specification through ByTune's custom slip ring engineering page. A real model recommendation must follow confirmation of the actual circuit ratings, dimensions, test conditions and approval documents; this article does not make that decision by itself.
The most useful outcome is a validated circuit, not a claimed universal feature. Map the stored-energy discharge path, verify coil pickup and release under the chosen suppression method, and test the finished rotary system with representative motion and simultaneous loads. That is how engineers distinguish a slip-ring problem from a coil-driver or wiring-design problem before making expensive changes.
