Thermocouple signals can be transferred across a rotating electrical interface, but a successful continuity test does not prove that the resulting temperature measurement is accurate. The main risk is not simply losing a wire. A thermocouple produces a small thermoelectric voltage, and additional material transitions at a slip ring can affect that voltage when the connecting junctions are at different temperatures. The error may appear only after a machine warms up or reaches operating speed.
For a rotating shaft, heater drum, test spindle or instrumented brake assembly, the practical engineering question is therefore: where is the thermocouple reference established, what crosses the rotor-to-stator boundary, and how will the complete measurement be verified while rotating? This guide compares direct thermocouple transmission with conditioning on the rotating side, then develops a wiring review, error-budget method and dynamic acceptance plan. It is not a claim that every general-purpose slip ring is suitable for thermocouple measurement.
Why a thermocouple channel is different from an ordinary analog channel
A thermocouple is formed from two dissimilar conductor materials, such as the alloys used in a Type K or Type T sensor. The measurement instrument interprets a voltage associated with the temperature difference between the sensing junction and a reference junction. It must also account for the reference temperature, commonly through cold-junction compensation (CJC). Thermocouple output is nonlinear, so conversion from voltage to temperature should use the relevant type-specific reference relationship rather than a single fixed multiplier across the entire measurement range.
A slip ring introduces extra material interfaces between the sensor and the stationary instrument. These may include thermocouple alloy-to-terminal connections, internal conductors, brush and ring materials, connectors and copper input leads. The law of intermediate metals explains why adding another metal does not automatically create a net error when the additional junctions are at the same temperature. But it does not authorize treating a non-isothermal rotating assembly as electrically transparent to a thermocouple.
If the two ends of a dissimilar-metal transition experience different thermal conditions, the added thermoelectric voltage can be interpreted by the measuring instrument as temperature change. Heating can come from contact friction, bearings, adjacent power circuits, the process itself or a warm enclosure. Specialist instrumentation suppliers explicitly caution against temperature gradients across slip-ring thermocouple circuits and offer rotating-side conditioning to manage that risk.
That distinction separates this task from general slip-ring contact-resistance testing. Contact stability matters, but an otherwise healthy conductive path can still produce a thermal measurement offset if its thermoelectric junctions are not controlled.
Draw the complete measurement boundary before choosing a wiring method
Map the installed arrangement from the sensing tip to the displayed temperature. At a minimum, identify the stationary controller or DAQ, stationary cable and termination, stator terminals, contact assembly, rotor terminations, rotating cable, and thermocouple measurement junction. The mounting and nearby heat sources must be part of this drawing. Include any heater supply, motor drive, encoder or digital communication sharing the same rotating assembly.
| Interface element | Information to document | Why it matters |
|---|---|---|
| Thermocouple and hot junction | Type, junction style, location, operating range, required accuracy | Establishes the measurement physics and acceptable error |
| Rotating lead and connection | Alloy/extension type, polarity, connector materials, transition temperature | Identifies the first possible unintended reference junction |
| Rotary electrical path | Dedicated channel pair, contact construction, nearby power paths, motion | Identifies mechanical and thermal influences on low-level voltage |
| Stationary termination | Wire materials, terminal block, connector temperature, shield path | Determines what additional junctions precede the measuring instrument |
| DAQ and reference | Thermocouple type setting, CJC location, input impedance, acquisition settings | Determines which junction temperature the instrument compensates |
| Other rotary services | Heater power, motors, grounds, communications, mechanical clearance | Reveals interference and heating conditions that affect the sensor |
Do not connect the thermocouple return to a convenient power return merely to save a channel. Thermocouples are normally measured as a defined differential pair under the input module's grounding and isolation requirements. The actual arrangement depends on the sensor junction (grounded, ungrounded or exposed), DAQ common-mode capability and system grounding plan. Protective earth, cable shield and thermocouple negative lead do not become equivalent simply because they share a machine enclosure.

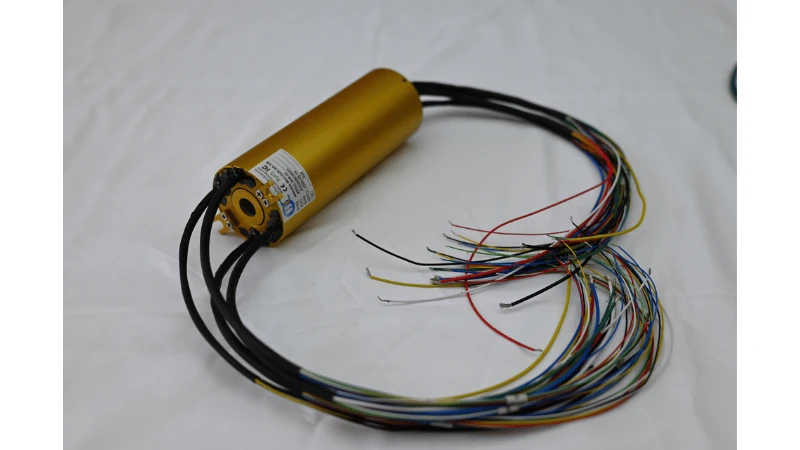

Direct transmission or conditioning on the rotor?
There are two main architectures. In the first, raw thermocouple conductors terminate at the rotating interface; the small sensor voltage then travels across the slip ring to stationary thermocouple measurement electronics. In the second, electronics mounted on the rotating side measure the thermocouple locally, establish their own reference temperature and transmit a conditioned electrical signal through the interface.
| Architecture | Advantages | Critical conditions | Best evaluation question |
|---|---|---|---|
| Raw thermocouple voltage across slip ring | Simple sensor-side hardware; no rotating amplifier supply required | Material junctions, thermal gradients, microvolt-level noise, CJC assumptions and channel isolation | Can the complete installed circuit meet its temperature-error limit at operating speed and temperature? |
| Rotating-side thermocouple conditioning | Measures weak sensor voltage before contact path; can compensate the local reference and raise signal level | Rotating electronics supply, thermal rating, reference accuracy, output format, EMI and dynamic verification | Can the conditioner and its transmitted output meet the accuracy budget under all operating states? |
Rotating-side conditioning is not automatically better in every dimension. It adds hardware, power wiring and thermal-management obligations. The output might be a larger analog voltage, 4–20 mA loop or digital data stream, depending on the conditioner; each has different slip-ring requirements. A design cannot be called suitable just because it has the same number of conductors. For example, changing to 4–20 mA requires a validated supply and load-voltage budget rather than treating a two-wire thermocouple as a current-loop transmitter.
Michigan Scientific documents both direct thermocouple connections and integrated rotating thermocouple amplifiers. Its technical explanation of thermocouple amplifiers addresses cold-junction compensation and signal-to-noise limitations. These are examples of an engineering approach, not verified performance data for any ByTune model.
Understand which junction temperatures your CJC actually corrects
The central installation mistake is assuming that an ordinary stationary DAQ CJC sensor automatically compensates every thermoelectric junction anywhere along a rotary interface. The CJC sensor usually represents a reference temperature at or near the DAQ's thermocouple input terminals. It cannot independently know the temperature at remote rotor terminals, stator terminals or hidden internal transitions unless additional measurement and modeling are provided.
Consider a raw Type K sensor attached to a rotating drum. Its positive and negative alloys are terminated to non-thermocouple conductors at the rotating connector. The signal then passes through a slip ring and exits at a stationary terminal block. If the rotating termination and stationary transition remain effectively isothermal in the relevant paired paths, additional junction contributions can cancel under the intermediate-metals principle. If the rotary assembly develops a temperature gradient, that cancellation may no longer hold. A small EMF that changes with speed or warm-up can shift the apparent temperature even while the real sensing junction stays constant.
The issue is not solved by moving the DAQ away from heat while keeping the remote transitions unmonitored. A better approach is to identify where each material changes, whether the paired transitions are at a common temperature and whether the system's CJC model actually matches that arrangement. OMEGA's temperature-measurement guidelines explain why the reference and intermediate-metal conditions matter. The relevant calibration should encompass the rotary path, not just the sensor element.
When local thermocouple conditioning is used, the conditioner should measure the thermocouple at the rotating reference point with suitable CJC. Its output is then a different signal with different error mechanisms. This is a change of measurement architecture-not a magical elimination of every possible error.
Wiring and termination decisions that can preserve or spoil accuracy
Start by fixing the thermocouple type and using the correct conductor/extension or compensating wire where required. Polarity, connector type, allowable extension temperature and termination materials must be checked as part of one circuit. A color convention alone is not sufficient because thermocouple color standards vary. Consult the actual cable and connector identification and the chosen measurement module configuration.
| Decision | Recommended engineering check | Failure if ignored |
|---|---|---|
| Pair assignment | Reserve a documented positive and negative path per thermocouple; do not silently share a return | Cross-talk, unexpected common-mode paths or misconnections |
| Thermocouple-to-terminal transition | Record the alloy and mating material on each side and test temperature gradients | Offset or drift not captured by stationary CJC |
| Extension/compensating lead | Match the specified type and temperature range; preserve polarity end to end | Additional temperature-dependent EMF |
| Shield and grounding | Use the selected input module's ground/isolation guidance and a documented shield scheme | Ground-loop pickup or insufficient noise rejection |
| Proximity to heaters/drives | Keep low-level signal routes separate where possible; test real switching states | PWM-correlated noise mistaken for temperature variation |
| Cable strain and anti-rotation | Control mechanical movement at rotor and stator exits | Intermittent faults and angle-dependent readings |
Before starting a temperature test, verify each circuit's mapping and polarity. Carefully distinguish mechanical cable continuity from electrical performance. A continuity meter can catch an open connection, but it cannot establish low microvolt offset or stability under rotation. Conversely, replacing a thermocouple because the reading fluctuates can waste time if the error is produced by a hot stator connection or a drive-noise path elsewhere in the assembly.
If a slip ring must combine thermocouple signals with heaters or motor power, specify their channels and allowable coupling separately. See ByTune's broader electrical noise diagnosis guide for the distinction between contact instability, EMI, crosstalk and grounding. This article's responsibility is narrower: whether those effects change a thermocouple temperature result.
Translate a microvolt disturbance into a temperature-error budget
An error budget prevents a supplier specification from collapsing into the vague request for a "low-noise thermocouple slip ring." Start with the allowable error of the completed measurement, including the sensor itself, reference junction, input electronics, installation and rotary transmission. Decide whether acceptance is based on absolute error, additional error caused by adding the slip ring, repeatability, transient disturbance or a combination.
As a local illustrative calculation only, assume a thermocouple has a sensitivity near the operating point of approximately 40 microvolts per degree Celsius. If the added rotary path produces 80 microvolts of equivalent offset, the corresponding local temperature error is about 80 / 40 = 2°C. This is an approximate sensitivity illustration, not a constant that applies to every thermocouple type or temperature. Actual voltage-to-temperature conversion should use the correct reference functions, such as the NIST ITS-90 thermocouple tables.
Now assume the application permits no more than 1°C of additional rotating-interface error. A system showing a 2°C added offset fails that particular requirement even if its static continuity and average contact resistance pass. The remedy may be more uniform junction temperatures, different termination placement, a more suitable instrumentation slip ring, rotating-side conditioning or a redesign of the sensor architecture. The 1°C limit here is hypothetical; the OEM must define its own acceptance limit.
| Budget contributor | How to evaluate it | Must it be measured? |
|---|---|---|
| Thermocouple element and calibration | Type, grade, traceable calibration and installed measuring range | Use specified tolerance and calibration evidence |
| DAQ resolution, noise and linearization | Module datasheet plus a suitable electrical simulation | Yes, for project acceptance |
| CJC and termination gradients | Actual input reference and remote junction temperatures | Yes, especially during warm-up |
| Rotary-interface thermal EMF | Baseline difference with and without rotation and thermal gradient | Yes, with representative mounting |
| Contact intermittency and pickup | Time-synchronized temperature/voltage trace | Yes, at the required acquisition bandwidth |
| Installation and sensor placement | Thermal contact, response time and local temperature gradients | Check against the physical measurement task |
Some systematic uncertainties can be combined statistically when independence and distributions are justified; others are bounded as worst cases. Do not automatically add every number in quadrature or subtract one channel's observed drift from another without a defined uncertainty model. The test report should separate system temperature error from error added by the rotary interface, since they support different acceptance decisions.
Separate sensor, reference and slip-ring errors before rotation
A useful bench sequence establishes a controlled reference rather than chasing a noisy machine reading. First, verify the DAQ with an appropriate thermocouple simulator or voltage source configured for its input and CJC method. Then check the actual thermocouple in a suitable stable temperature reference. Finally, add the intended rotary path while retaining the same sensing condition. Record exact cable and connector changes at each step.
Three comparisons are especially informative. Without slip ring: the sensor and acquisition system provide the reference performance. With slip ring stationary: the path includes all additional connections but no contact motion. With slip ring rotating: the difference includes dynamic contact behavior, speed-dependent heating and motion-coupled interference. A fourth condition after thermal stabilization is essential where bearings, power circuits or process heat warm the assembly.
A convenient instrument trace must not replace the real sensor if the trace bypasses the thermocouple's material transitions. For example, injecting a conditioned millivolt signal directly at the stationary end can verify a DAQ, but it does not test the upstream rotating thermocouple termination. Use each simulation at the boundary it actually represents. Clearly state where the electrical simulator was connected, because "calibration passed" is ambiguous otherwise.
Dynamic validation: make speed, heat and switching separate variables
The final acceptance test should reproduce the installed mechanical envelope, rotor/stator cable supports, adjacent power loads and operating temperature. Set the thermocouple junction at a stable, independently measured reference wherever practicable so that measured changes can be attributed to the rotary measurement chain. If a truly stable rotating reference cannot be implemented, use a well-characterized alternative and document its limitations.
| Test state | Rotation / heat / power | Primary observation | Interpretation |
|---|---|---|---|
| A. Direct baseline | Sensor and DAQ without rotary path | Reference accuracy and input noise | Separates intrinsic instrumentation limits |
| B. Installed static | Slip ring connected, stopped, thermally stable | Offset relative to A | Reveals added connections and fixed error |
| C. Low-speed dynamic | Representative wiring, slow rotation, other power off | Angle-correlated spikes or cyclic variation | Suggests contact or mechanical sensitivity |
| D. Normal operating motion | Nominal speed and reversals as required | Continuous bias, noise and transient events | Establishes real service-state performance |
| E. Thermally stabilized | Same motion after warm-up/process heat | Change in offset versus terminal temperatures | Tests thermoelectric-gradient sensitivity |
| F. Interference state | Motion plus heaters/motor drive switching | Noise correlated with switching | Separates EMI effects from slow thermal drift |
| G. Worst required condition | Approved speed, thermal load and installation | Maximum error, dropouts and recovery | Final project-specific acceptance |
For every state, log the shaft speed and angle where available, rotor/stator termination temperatures if accessible, real reference temperature, raw input voltage or equivalent measurement data, converted temperature, DAQ filter settings, adjacent power state, and elapsed time. If acquisition uses filtering, capture a sufficiently fast raw trace to reveal brief contact disturbances that an averaged display might conceal. The necessary sample rate and bandwidth depend on the mechanical motion and the control or data-logging objective; a universal number would be misleading.
Do not infer a calibrated temperature from a single nominal RPM or a single room-temperature bench run. The goal is to show that the measurement remains inside the complete system's approved error limit in the actual conditions where the rotating part is used. A test at a higher speed but without process heating may be less representative than a lower-speed, fully heated run.
Diagnose the shape of the error, not merely the symptom
| Observed temperature behavior | Possible cause | Most useful next comparison |
|---|---|---|
| Offset grows slowly after startup | Reference-junction gradient, bearing/contact heating, DAQ drift | Repeat at fixed actual temperature and log terminal temperatures |
| Short spikes repeat at the same shaft angle | Contact variation, connector movement, mechanical runout | Record raw signal and angle together at slow/normal speed |
| Noise appears only when heater or VFD switches | Conducted/radiated EMI or shared reference path | Hold motion constant; compare load switching off/on |
| Wrong temperature even when stationary | Wrong thermocouple type, reversed polarity, wrong extension lead or CJC configuration | Check simulator, termination materials and DAQ settings |
| Only one of several channels drifts | Channel-specific termination or thermal path | Compare neighboring channel junction temperatures and routing |
| All channels shift together during warm-up | Common reference temperature or electronics heating | Compare DAQ/CJC readings and physical reference points |
The listed causes are hypotheses, not one-to-one diagnostic rules. An angle-correlated spike can also arise from the cable rubbing at a repeatable position. A slow offset can result from an actual process temperature change if the reference is not controlled. The troubleshooting method works only when the independent temperature reference and test configuration are known.
When should you abandon raw thermocouple transmission?
Choose raw transmission only after the design demonstrates that the complete installed path meets its permitted additional error and repeatability requirements. It can be an efficient solution where the slip ring is thermally uniform, low-level electrical noise is controlled and the measurement duty is compatible with the chosen instrumentation. But if a small, speed-dependent temperature gradient produces an unacceptable bias, repeating continuity checks is unlikely to fix the root problem.
A rotating-side conditioner is a strong candidate when the installation experiences substantial and changing rotor-to-stator temperature differences, when the raw signal is sensitive to electrical interference, or when several temperature channels must share a demanding rotary assembly. It still requires validated power, local CJC accuracy, sensor isolation, environmental capability, output protocol and service access. If the conditioner outputs digital data, validate the actual digital physical layer; if it outputs analog voltage or current, validate that interface's noise and load limits instead.
Another option is to change the sensor technology or place the electronics differently. An RTD may offer a different accuracy and stability trade-off but requires excitation and management of lead resistance. A temperature transmitter located at the rotating element may simplify the weak-signal boundary while adding electronics and power. These are system architecture choices, not automatic replacements for an approved thermocouple.

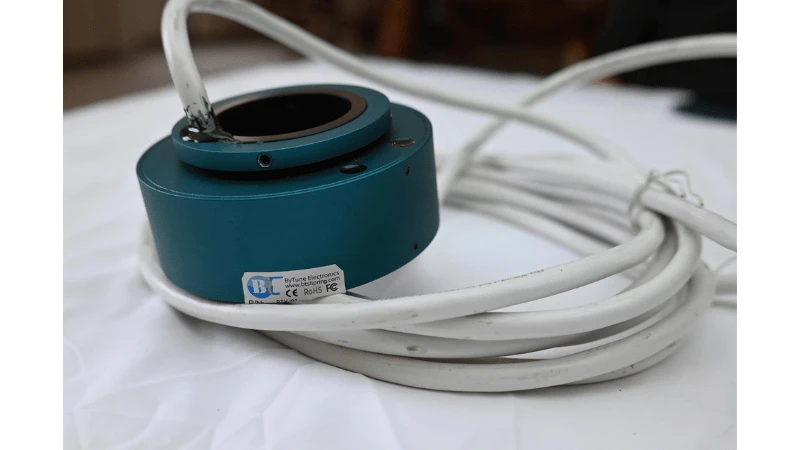

For a purpose-built assembly, use the ByTune custom slip-ring inquiry route to specify the entire interface rather than requesting a generic "thermocouple-ready" part. A project may require a dedicated instrumentation path, particular termination design, thermal isolation or a signal-conditioning arrangement; whether a given configuration is available must be confirmed by the manufacturer against the actual drawings and test plan.
Send the supplier a measurement specification, not just a circuit count
| RFQ field | What the engineering team should supply |
|---|---|
| Temperature measurement objective | Hot-junction locations, sensor type and class, range, required accuracy and transient response |
| Reference architecture | Raw TC through contacts or conditioned signal from the rotating side; exact CJC location |
| Channel map | Dedicated TC positive/negative circuits, other signal/data circuits, power circuits and protective/chassis paths |
| Thermocouple wiring | Conductor/extension types, connector and transition materials, shielding, isolation and polarity |
| Mechanical envelope | Shaft, bore, OD, length, mounting, cable exit and anti-rotation arrangement |
| Operating profile | Speed, duty, reversals, vibration, environment, startup and thermal steady-state conditions |
| Thermal influences | Process heat, heater current, expected rotor/stator terminal temperatures, airflow and warm-up period |
| DAQ/conditioner | Input configuration, CJC, excitation/power if relevant, output type, filters and acquisition bandwidth |
| Acceptance plan | Reference temperature method, allowable extra offset and drift, dynamic spikes, worst-case operating state |
| Evidence requested | Specific design drawing, wiring map, applicable datasheet and agreed rotating validation data |
Do not substitute a generic advertised "low noise," lifetime or maximum RPM for a measurement-performance requirement. The relevant response is whether the exact proposed assembly can meet the sensor's error budget across the actual mechanical, thermal and electrical conditions. Likewise, a family-level claim that an assembly transmits thermocouple signals does not by itself establish compatibility or accuracy for an individual model.
Release criterion: prove the temperature, not merely the connection
Approve the rotary thermocouple path when its junction materials and reference arrangement are documented, its installation and wiring match the tested configuration, and its additional offset, drift, noise and transient errors remain within the application limits during representative rotation, heating and electrical switching. Record whether the limits apply to the entire sensing system or only to the contribution from the slip ring.
If the test only establishes that the rings are conductive, the temperature measurement is not yet qualified. If the raw signal fails but a validated rotating-side conditioner passes, the architecture change is evidence-based rather than speculative. That is the difference between a slip ring that can pass two wires and a rotating temperature-measurement system that can be trusted.
