Slip Rings For Robots: How To Choose The Right Type For Robotic Systems

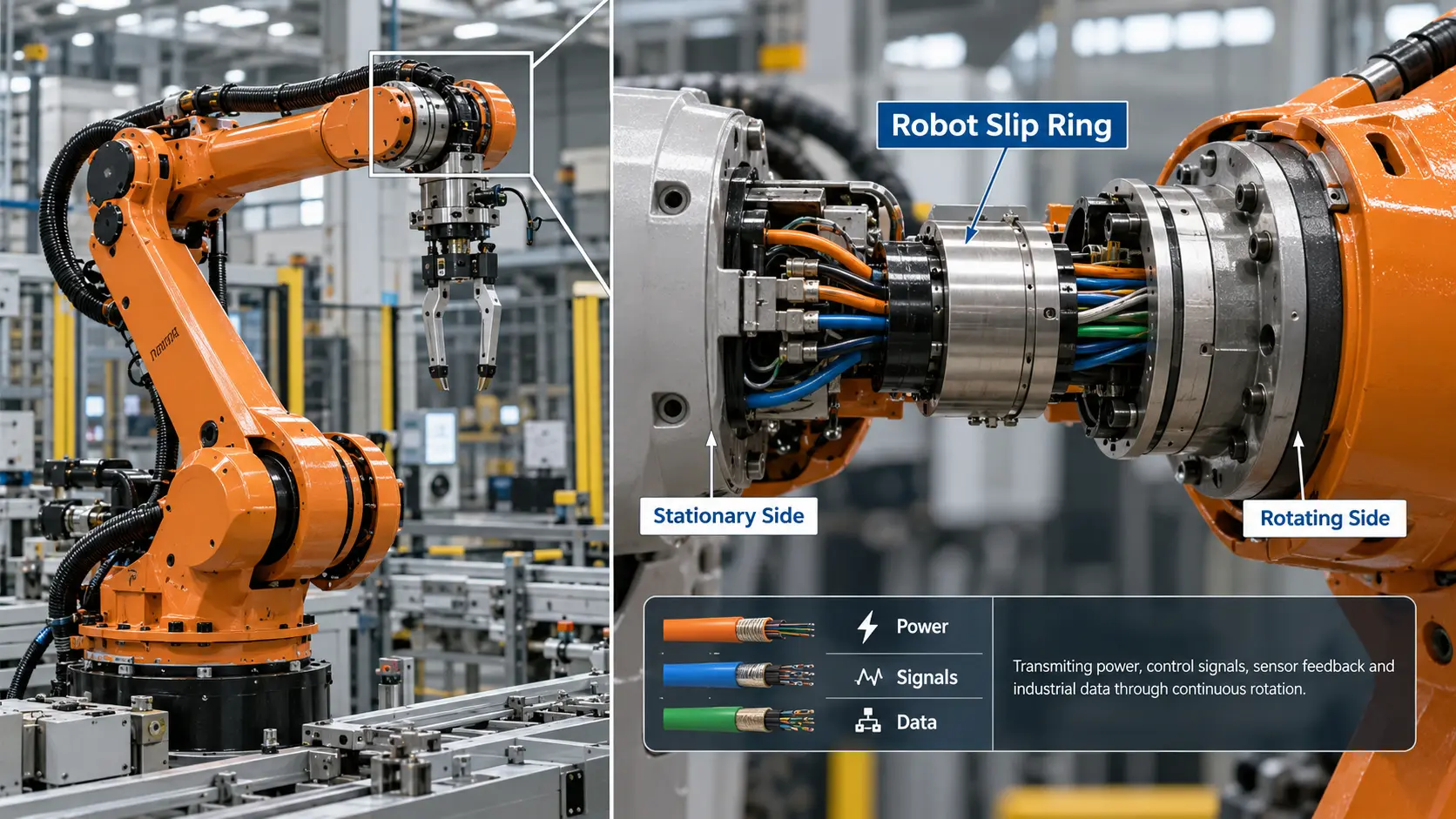

Slip rings for robots provide an electrical connection across a rotating joint, allowing power, control signals, sensor feedback, or digital data to pass between stationary and rotating parts of a robotic system.

They are most useful when an axis requires continuous rotation or when repeated cable winding would create excessive stress, large service loops, interference with nearby mechanisms, or frequent maintenance.

Choosing a robot slip ring, however, is not simply a matter of matching the number of wires. A collaborative robot wrist, a welding robot, and an inspection robot may all need rotary electrical connections, but their requirements for current, communication, torque, speed, mechanical space, environmental protection, and operating life can be very different.

A better selection process starts with one question:

What must cross the rotating joint, how does the joint move, and what electrical, mechanical, communication, and environmental conditions must the interface support?

What Is a Robot Slip Ring?

A robot slip ring is an electromechanical rotary interface that transfers electrical power, signals, or data between stationary and rotating sections of a robotic system while allowing relative rotation.

Depending on the application, one rotary interface may carry:

• Motor or actuator power
• Tool power
• Encoder feedback
• Sensor and control circuits
• Ethernet or other industrial communication
• USB or video
• Several power and data functions together

Slip rings may be installed in robot bases, wrist joints, tool axes, rotating grippers, camera heads, sensor platforms, and other mechanisms where electrical continuity must be maintained through rotation.

For an application-specific example, see our signal slip rings for robots, ROVs, and UAVs.

Why Do Robots Use Slip Rings?

Not every robot joint requires a slip ring.

A limited-angle axis can often operate with properly routed flexible cables. A slip ring becomes more relevant when the axis must rotate continuously or when repeated cable winding and unwinding would create an unacceptable mechanical limitation.

Depending on the robot, a slip ring can:

• Enable continuous rotation without repeatedly twisting fixed wiring
• Deliver power to rotating motors, actuators, heaters, grippers, or process tools
• Return encoder and sensor feedback
• Maintain communication across a rotating axis
• Reduce large external cable loops
• Simplify wiring around compact rotating mechanisms
• Combine electrical transmission with air, vacuum, or hydraulic media

The important distinction is that the need for a slip ring comes from the motion and transmission requirements of the joint, not simply from the fact that the machine is a robot.

Where Is a Slip Ring Used in a Robot?

Rotating Robot Base

A continuously rotating robot base creates an interface between the stationary machine structure and the rotating upper assembly. Motor power, controls, sensors, safety-related wiring, and communication may all need to cross this boundary.

If a shaft, structural member, pneumatic tube, or existing cable bundle must pass through the center of the axis, a through-hole slip ring can provide a central opening around the existing mechanism.

Robot Wrist and End-of-Arm Joint

The wrist is often one of the most demanding locations for a robotic slip ring. Space may be limited, additional mass near the end of the arm matters, and the joint may experience frequent starts, stops, direction changes, and repetitive operation.

The same joint may also need to supply:

• Electric grippers
• Welding tools
• Screwdrivers
• Cameras
• Force or position sensors
• Dispensing equipment
• Inspection probes

A wrist design therefore has to balance package size, electrical circuits, communication, rotational resistance, cable routing, and lifecycle requirements rather than optimizing only one specification.

Rotating Grippers and Process Tools

A gripper or process tool may rotate independently of the robot arm. The tool can require power and sensor feedback while turning continuously around its own axis.

If it also requires compressed air or vacuum, separate rotary devices are not always necessary. A hybrid electrical and pneumatic slip ring can combine these services at the same rotating interface.

Camera, Scanner, and Sensor Heads

Inspection robots, machine-vision systems, scanners, and mobile robotic platforms may use rotating cameras or sensor heads.

These applications can place more emphasis on signal integrity and communication than on high current. A single rotating interface may need to carry camera power, encoder feedback, Ethernet, USB, video, or other digital communication.

For this reason, describing every non-power connection simply as a "signal circuit" provides too little information for engineering selection.

What Can a Robot Slip Ring Transmit?

Motor and Tool Power

A robot slip ring may deliver electrical power to motors, actuators, heaters, lights, grippers, welding equipment, or other rotating tools.

Each power circuit should be identified separately. A low-current sensor supply and a high-current process load may pass through the same assembly, but they create different requirements for conductors, contacts, wiring, and thermal management.

Normal current should also be distinguished from relevant startup, inrush, or intermittent peak current.

Encoder and Sensor Signals

Robotic systems rely on feedback from encoders, proximity sensors, force sensors, temperature sensors, limit switches, and other instrumentation.

Because these signals may operate at lower electrical levels than motor or heater circuits, factors such as electrical noise, shielding, grounding, circuit separation, cable construction, and contact stability can become more important.

In practice, the goal is not merely to maintain continuity. The complete rotary path must preserve the characteristics required by the measurement or feedback circuit.

For more detail, see our guide to stable signal transmission through slip rings.

Ethernet and Industrial Communication

Modern robotic systems may require Ethernet or another industrial communication interface across a rotating axis.

In this situation, specifying only "data" is not enough. High-speed communication depends on the complete transmission path, including conductor arrangement, cable construction, shielding, termination, and the communication interface that must be supported.

IEEE 802.3 defines Ethernet network technologies at the MAC and physical layers. For a rotating interface, this means Ethernet should be treated as a defined communication requirement rather than as a generic group of spare conductors.

Unused circuits in a conventional power slip ring should not automatically be assumed to provide the required Ethernet performance.

For a product-level example, see our Gigabit Ethernet slip ring.

USB, Video, and Other Digital Interfaces

Robotic cameras, 3D scanners, inspection platforms, and machine-vision equipment may also require USB, digital video, or another high-bandwidth link.

Conductor count alone does not establish protocol compatibility. The actual interface and required communication performance should be defined during selection.

A relevant application example is our USB 2.0 slip ring for robotics.

Air, Vacuum, and Hydraulic Media

Robot tooling often needs more than electricity. Pneumatic grippers may require compressed air, vacuum tools require a vacuum path, and specialized systems may use hydraulic media.

When these services share the same axis, a hybrid rotary assembly can integrate electrical and fluid transmission into one rotating interface.

How Robot Applications Change Slip Ring Requirements

The term "robotics" is not a complete slip ring specification. The joint location, process, payload, communication requirement, environment, and motion profile determine which parameters matter most.

Two robots that perform similar movements can therefore require very different rotary electrical interfaces.

Which Type of Slip Ring Fits a Robot?

Capsule and Miniature Slip Rings

Capsule and miniature designs are commonly considered when outside diameter is limited and a large central opening is not required.

They can suit compact grippers, small robot joints, cameras, instruments, and inspection mechanisms. Package size alone, however, is not enough. The unit must still support the required current, circuits, signals, speed, torque, wiring, and operating life.

See our capsule slip ring range for examples of this compact architecture.

Through-Hole Slip Rings

A through-hole slip ring provides an opening through the center of the rotary assembly. This makes it useful where a robot axis already contains a shaft, structural element, cable bundle, pneumatic tube, hydraulic line, or other machine service.

The required bore should be defined early because increasing bore diameter also affects the overall mechanical envelope.

Pancake Slip Rings

A pancake configuration may be considered when axial space is tightly limited but additional radial space is available.

This creates a different packaging trade-off from capsule and conventional through-hole designs. For axially constrained installations, see our pancake slip ring solutions.

Data-Capable and Hybrid Designs

If Ethernet, USB, video, encoder feedback, or another communication interface is essential, data performance should influence the design from the beginning rather than being assigned to spare circuits later.

Where electrical power, signals, communication, and air or fluid services must share the same axis, an integrated hybrid architecture may be more practical than several separate rotary devices.

How to Choose a Slip Ring for a Robot

1. Start With the Rotating Joint

The joint geometry immediately determines which slip ring architectures are realistic.

Identify which axis rotates, whether the movement is continuous or limited, whether a shaft or service line occupies the center, where the slip ring will be mounted, and how much radial and axial space is available.

Making these decisions first avoids choosing an electrical configuration that later conflicts with the robot structure.

2. Build a Circuit Schedule

A requirement such as "20 wires" is not enough because it does not explain what those conductors must carry.

For every circuit, record:

• Function
• Voltage
• Normal current
• Relevant peak or startup current
• Whether it carries power, control, measurement, or communication

This separates high-load circuits from low-level feedback and communication channels before the mechanical design is finalized.

3. Identify Signals and Communication by Function

"Six signal wires" creates the same problem.

An encoder, thermocouple, analog sensor, CAN interface, Ethernet link, USB connection, and video channel are not equivalent requirements.

Electrical continuity and communication compatibility are different engineering questions.

The slip ring should be evaluated for the actual interface rather than simply for the number of conducting paths.

4. Describe the Motion Profile, Not Just Maximum RPM

A robot axis can run continuously, oscillate, reverse repeatedly, accelerate and decelerate rapidly, or operate only during short process cycles.

These conditions matter because wear and lifecycle depend on how contact surfaces and mechanical components operate over time. Two applications with the same maximum RPM may therefore create different service demands.

Specify normal speed, maximum speed, motion type, reversal frequency, and approximate operating time.

Where rotational speed is a major constraint, our article on high-speed slip ring design provides additional context.

5. Check Torque and Mechanical Integration Together

A slip ring becomes part of the joint's mechanical load. Contacts, bearings, and seals can introduce rotational resistance, which may matter in compact joints, collaborative robots, lightweight tooling, and precision positioning systems.

Where torque margin is limited, distinguish starting torque from running torque and compare both with the available joint margin.

Mechanical fit should be checked at the same time. Record the maximum outside diameter, axial length, bore requirement, mounting interface, rotor and stator orientation, cable exit direction, and connector position.

Lead routing is also part of the design. A suitable slip ring can still create integration problems if cables interfere with the housing, nearby moving components, or the required bend radius.

6. Translate the Environment Into Design Requirements

Robotic equipment can operate in clean indoor automation, welding cells, washdown areas, outdoor inspection systems, mining environments, or marine applications.

Instead of requesting a vague "waterproof" or "industrial" design, document the actual exposure to dust, moisture, washdown, salt, chemicals, temperature, vibration, shock, or cleanroom conditions.

The IEC 60529 standard defines the IP Code used to classify protection provided by electrical enclosures. An appropriate IP requirement should therefore be based on the real exposure conditions of the robot.

For application guidance, see our explanation of slip ring IP ratings.

7. Consider Lifecycle and Maintenance Access

A slip ring buried inside a robot wrist creates a different maintenance problem from one mounted on an easily accessible rotary table.

Consider the expected operating hours, motion frequency, accessibility, acceptable downtime, and preventive-maintenance strategy together.

Service-life figures should always be interpreted in the context of a particular design and operating condition rather than treated as one universal rotation value for every robotic application.

See our guide to factors that influence slip ring lifespan.

8. Decide Whether a Standard or Custom Design Fits

A standard product is normally the best starting point when its dimensions, bore, circuits, current ratings, communication capability, motion performance, torque, and environmental protection already match the robot.

Customization becomes more relevant when a standard product creates a significant compromise elsewhere in the design, such as an oversized joint, insufficient bore, unsupported communication, poor cable routing, or the need for several separate electrical and fluid rotary devices.

Our guide to standard vs. custom slip rings explains this decision in more detail.

Illustrative Example: Selecting a Slip Ring for a Compact Robot Wrist

The following example is a selection illustration rather than a customer case.

Assume a robot wrist has the following requirements:

• Limited outside diameter
• No large center bore requirement
• Motor or tool power
• Encoder feedback
• Ethernet communication
• Continuous rotation with frequent reversals
• A relatively tight torque budget

The limited diameter points toward a compact capsule-style architecture rather than a large through-hole unit. However, package size alone does not determine the answer because the Ethernet channel must be treated as a defined communication path and the torque requirement must be checked against the joint's available margin.

The motion profile also means that maximum RPM should not be the only lifecycle input. Reversal frequency, operating hours, and maintenance access should be included.

The likely decision path is therefore:

Compact mechanical architecture → verified data-capable transmission → torque review → motion/lifecycle review → standard product if all requirements fit, custom design if they do not.

This is the main reason robot slip rings should be selected from the complete joint requirement rather than from diameter or circuit count alone.

Robot Slip Ring Specification Template

Before contacting a supplier, prepare a requirement sheet that describes the complete rotating interface.

This format gives the supplier enough context to evaluate the whole rotating joint rather than making assumptions from wire count alone.

Common Robot Slip Ring Selection Mistakes

Specifying Only Wire or Circuit Count

"20 wires" or "six signal circuits" does not explain the electrical load or communication function. Identify voltage, current, peak load, and signal or protocol for each relevant path.

Ignoring Peak Current

Motors and process tools may draw different current during startup or specific operating stages than during steady-state operation. Relevant peak conditions should be included in the specification.

Choosing From Maximum RPM Alone

Maximum speed does not describe acceleration, reversal, cycling, operating time, or oscillating motion. These conditions should be included when evaluating lifecycle and mechanical suitability.

Ignoring Torque and Mechanical Fit

A compact unit may still create too much rotational resistance for a sensitive joint, while an electrically suitable unit may be too large for the available envelope. Mechanical integration and electrical capability should be reviewed together.

Treating Data as Spare Wiring

High-speed communication should be treated as an engineered transmission path. Conductor count alone does not establish Ethernet, USB, video, or other protocol performance.

Assuming Every Robot Axis Needs a Slip Ring

Limited-angle joints can often use flexible cabling. A slip ring is most appropriate where continuous rotation or repetitive cable twisting creates a genuine engineering requirement.

When Does a Robot Need a Custom Slip Ring?

Custom development becomes useful when several demanding requirements overlap at the same rotating joint.

Typical combinations include:

• Very small package + encoder + Ethernet
• Large through-bore + motor power + control signals
• Welding power + communication
• Power + USB or video + pneumatic tooling
• Harsh environmental exposure + camera or sensor data
• Low torque + repetitive high-cycle motion
• Application-specific cable, connector, or mounting requirements

Customization should solve an actual integration constraint rather than simply create a different catalog part.

If standard products cannot meet the complete electrical, communication, mechanical, and environmental requirements, review our customized slip ring solutions.

Final Thoughts

Slip rings for robots should be selected as part of the complete rotating-joint architecture rather than as isolated electrical components.

Start with the joint. Define what must cross it, how it moves, how much mechanical space is available, which communication interfaces are required, what torque constraints apply, and what environment and lifecycle the assembly must support.

Once these conditions are clear, the choice between a capsule, through-hole, pancake, data-capable, hybrid, standard, or custom slip ring becomes much more structured.

Before requesting a quotation, prepare the complete rotating-interface specification rather than sending only circuit count or overall dimensions.
