How to Improve the Signal Transmission Performance of Through Hole Slip Rings?

For many industrial buyers and plant engineers, the biggest challenge with through-hole slip rings is not installation, but maintaining stable signal transmission during long-term operation. Issues such as intermittent signals, data loss, or electromagnetic interference can directly lead to production downtime. In this article, we will analyze the main factors that affect slip ring performance and share methods to enhance their reliability in high-speed and harsh working environments.

Low transmission performance in through-hole slip rings can cause unstable signals, affecting equipment operation and increasing production costs. Typical problems include:
❌ Signal Loss and Noise: Inaccurate monitoring or device control due to intermittent signals or data distortion.
❌ Higher Maintenance Costs: Frequent failures and wear result in more downtime and replacement expenses.
❌ Reduced Equipment Lifespan: The slip ring brush and ring wear will accelerate. This shortens the life of itself as well as the connected equipment.
❌ Production Risks: In CNC machining or wind power, unstable transmission may cause stoppages, quality defects, or safety hazards.

The frequent transmission problem of slip rings doesn't come from a single cause, but from the interaction of the following factors:

• Material Limitations: Precious metals such as gold and silver reduce contact resistance and enhance signal stability. But copper-based rings may not perform so well. Its conductivity drops as resistance rises with temperature.

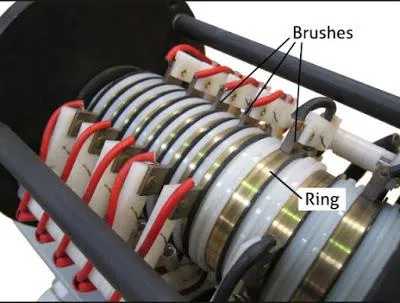

• Design Gaps: A spiral brush arrangement is often used in CNC machine tool spindles to reduce friction and prevent unstable contact. An uneven brush arrangement or poorly partitioned channels often result in cross-talk between power and signal lines.

• Environmental Stress: In steel plants where ambient temperatures exceed 200℃, copper resistance can increase by more than 40%, leading to signal attenuation. Besides, dust, humidity, and heat not only accelerate wear but also introduce noise into weak signal transmission.
• Mechanical Stress: At high rotation speeds, brushes and rings endure strong centrifugal force and friction, creating unstable contact.

Improving the transmission performance of through-hole slip rings is not only about material selection. We should also consider the slip ring design, manufacturing, and environmental control.

✅ Optimize Materials
Precious metals such as gold plating can reduce resistance and keep signals stable even after millions of rotations. Advanced insulating polymers like PPS are often chosen for high-temperature industries. They can operate safely above 200 °C.



✅ Improve Structural Design
We can use multi-contact or spiral brush structures to distribute wear evenly. These can help slip rings maintain better contact under high-speed rotation. In CNC spindles, this design has been proven to reduce bit error rates.

✅ Apply Signal Processing
Built-in filters and shielding layers help eliminate noise and protect weak signals. In sensitive applications such as radar or medical imaging, less noise means more details in the signal can be preserved to make the imaging clearer.



✅ Control the Working Environment
Sometimes, the through-bore slip ring needs to remain stable outdoors or under continuous high-load operation. Then we'd better seal it at high levels, such as IP65 or IP68, against dust and moisture. And this can go better with combined with proper cooling.

Improving slip ring performance requires effort in different aspects, including slip ring design, process, and application-specific solutions. For industrial buyers like you, these improvements mean more stable operation, longer service life, and fewer interruptions in your systems.

As a leading slip ring manufacturer, ByTune specializes in offering high-speed, vibration-resistant, and silent through-hole slip rings. If you are sourcing through-hole slip rings for CNC machinery, wind power, or military-grade systems, contact our team today for a tailored-made solution and free consultation.
