Why Use Mercury Wetted Slip Rings?
Mercury wetted slip rings replace mechanical brush contact with liquid mercury pools that maintain molecular-level bonding with electrical contacts. This design delivers contact resistance below 1 milliohm-roughly 10 to 20 times lower than traditional brush systems-while achieving operational lifespans extending to a billion revolutions.
The Fundamental Performance Gap
Traditional slip rings face an inherent limitation: metal brushes rubbing against metal rings create friction, wear debris, and variable contact resistance. The contact point changes continuously as the brush moves along the ring surface, causing instantaneous resistance to vary significantly even in brand-new devices.
Mercury wetted designs eliminate this variability. The liquid metal forms a molecularly bonded connection that remains constant regardless of rotation speed or position. The difference becomes critical in three performance dimensions.
Electrical Resistance and Signal Integrity
Standard brush-type slip rings exhibit initial resistance of 10 to 20 milliohms that fluctuates during rotation. Mercury wetted units maintain sub-milliohm resistance that stays constant throughout the device's operational life.
This matters for sensitive signal transmission. Mercury wetted slip rings maintain signal integrity over time, while brushed versions degrade signals as brush wear accumulates. Applications involving thermocouples, strain gauges, or high-frequency data cannot tolerate the voltage drops and noise introduced by variable contact resistance.
The near-zero electrical noise characteristic proves crucial for precision instruments and communications equipment where even minor interference compromises data integrity.
Operational Longevity Without Maintenance
Brush wear drives the maintenance cycle for traditional slip rings. As brushes and rings wear, they create dust particles that coat contact surfaces, adding resistance layers and eventually requiring component replacement.
Mercury wetted slip rings achieve operational life extending to a billion revolutions, compared to tens of millions for brush-based systems. Under controlled conditions, these devices have demonstrated lifespans exceeding 1 billion revolutions, with some field installations reporting over 2 billion cycles.
The absence of physical wear between solid components eliminates the primary failure mechanism. Mercury wetted designs require no scheduled maintenance, while brush systems need inspection and replacement at industry-recommended intervals of 500,000 revolutions or six months.
For applications running continuously at 100 RPM, this translates to brush replacement every 83 days versus essentially maintenance-free operation. The cumulative cost difference-including labor, downtime, and replacement parts-becomes substantial over a decade of operation.
Zero-Noise Signal Transmission
Brush-type slip rings introduce electrical noise into transmitted signals due to resistance variation during rotation. This electrical noise manifests as voltage spikes, drops, and interference that corrupt data signals.
Mercury wetted slip rings transmit with nearly zero electrical noise, enabling the same device to handle both power and sensitive signal transmission simultaneously. This dual capability simplifies system design and reduces component count in rotating assemblies.
The practical impact appears in radar systems, where signal clarity determines detection range and accuracy. In aerospace and defense applications, mercury wetted slip rings ensure data transmission without interruption or degradation-a non-negotiable requirement for mission-critical operations.
Application-Specific Advantages
Different industries prioritize different performance characteristics. Mercury wetted slip rings address specific technical challenges across multiple sectors.
Medical Imaging Systems
CT scanners and MRI machines require reliable electrical connections combined with uninterrupted rotational movement for precise diagnostics. The reduced electrical noise and consistent performance prevent degradation of diagnostic image quality.
Medical imaging systems operate for thousands of hours annually. The extended lifespan and maintenance-free operation reduce the risk of unexpected failures during patient procedures-a critical consideration where downtime directly affects patient care.

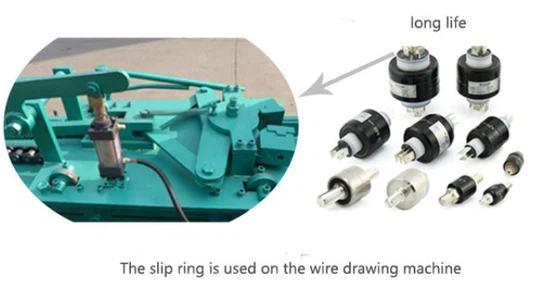

Industrial Automation and High-Speed Applications
In environments where machines operate at high speeds requiring precise control, the durability and consistent performance minimize downtime and contribute to smoother production processes.
Packaging machinery and automated production lines can't tolerate signal interruptions or position errors caused by electrical noise. The stable, low-resistance connection ensures servo motors and sensors receive accurate data throughout every rotation cycle.
Mercury slip rings handle high rotational speeds effectively, maintaining performance characteristics that conventional brush systems cannot match at elevated RPMs.
Aerospace, Defense, and Telecommunications
Satellite communications and radar systems require components providing low electrical noise capable of handling high data speeds. The longevity and noise-free characteristics make mercury wetted slip rings ideal for mission-critical applications in aviation, maritime, and defense sectors.
Signal integrity cannot be compromised when transmitting telemetry data from rotating antenna arrays or when maintaining communications links through rotating satellite connections. The consistent electrical performance across billions of revolutions provides reliability that brush-based systems cannot achieve.
Wind Energy Systems
Wind turbines require slip rings to transfer power generated by moving blades to stationary components. The low-maintenance and high-performance attributes make them well-suited for this application.
Wind turbines operate in harsh environments with limited access for maintenance. Offshore installations make routine maintenance particularly expensive and weather-dependent. The extended service life without maintenance requirements directly reduces operational costs and improves system availability.
Technical Considerations and Limitations
Mercury wetted slip rings deliver superior performance, but their implementation requires awareness of specific constraints.
Temperature Operating Range
Mercury solidifies at approximately -40°C, establishing the lower limit for operational temperature. Most mercury slip rings operate within a temperature range of -20°C to +60°C, though specific ranges vary by application.
This temperature sensitivity requires consideration for outdoor installations in extreme climates or applications experiencing wide temperature fluctuations. Mercury's physical properties can change dramatically with temperature variations, potentially affecting conductivity and performance.
Safety and Environmental Handling
Mercury's neurotoxic effects are well-documented-even small amounts can be harmful if inhaled, ingested, or absorbed through skin. Health exposure can lead to serious complications including neurological and organ damage.
Mercury-based slip rings cannot be used in food manufacturing, processing pharmaceutical equipment, or any application where contamination risk exists. A seal breach leading to mercury release poses immediate health risks and requires specialized cleanup procedures.
Handling and disposal demand strict adherence to safety standards, and any lapses can lead to increased operational costs and downtime. Manufacturers address these concerns through hermetically sealed units designed to prevent mercury exposure during normal operation.
Regulatory Compliance
Mercury is regulated by the European Union's Restriction of Hazardous Substances (RoHS) directive, though the regulation only covers consumer electrical and electronic products. Mercury wetted slip rings may be legally bought and sold in Europe for non-consumer industrial applications.
Organizations using mercury wetted slip rings must maintain compliance with applicable environmental regulations and implement proper disposal protocols when devices reach end-of-life.
Emerging Alternatives
Manufacturers have developed proprietary non-mercury conductive liquids that maintain low and stable contact resistance while delivering comparable high-performance results. These alternatives have achieved over 500 million revolutions in testing, approaching the performance levels previously available only from mercury-based designs.
For applications where mercury's toxicity presents unacceptable risk, these gallium-based and other liquid metal alternatives provide viable options. However, they represent recent developments, and long-term field performance data remains limited compared to mercury wetted designs' decades-long track record.
Frequently Asked Questions
How does contact resistance affect real-world performance?
Contact resistance directly impacts power efficiency and signal quality. In a 24-volt control system, 20 milliohms of resistance causes a 0.48-volt drop at just 24 amps-potentially enough to cause control errors. Mercury wetted designs with sub-milliohm resistance eliminate this voltage drop concern, even at higher current levels.
Can mercury wetted slip rings handle both power and data simultaneously?
Yes, the near-zero electrical noise allows a single mercury wetted slip ring to transmit power and sensitive signals through the same unit. Traditional brush systems often require separate dedicated paths for power and signals to prevent interference.
What determines the actual service life in field conditions?
Life expectancy depends on application-specific factors including vibration, temperature, RPM, mounting eccentricity, and other conditions. Proper installation within manufacturer specifications and minimal vibration environments maximize operational lifespan. Excessive vibration or sudden shocks can significantly reduce service life or cause premature failure.
How do mercury wetted slip rings compare on total cost of ownership?
Initial purchase cost runs higher than traditional slip rings, but maintenance elimination changes the economic equation. A traditional system requiring brush replacement every six months over ten years incurs significant cumulative costs in parts, labor, and production downtime. Mercury wetted designs eliminate these recurring expenses despite higher upfront investment.
Mercury wetted slip rings solve specific engineering challenges where conventional brush-based designs fall short. The combination of sub-milliohm contact resistance, multi-billion revolution lifespan, and zero electrical noise makes them the appropriate choice for applications where signal integrity, maintenance-free operation, and long-term reliability justify the higher initial cost and handling requirements.
The decision to use mercury wetted slip rings ultimately depends on whether an application's technical requirements-particularly around electrical noise sensitivity, maintenance accessibility, and operational lifespan-align with the technology's strengths while accepting its constraints around temperature limits and mercury handling protocols.
