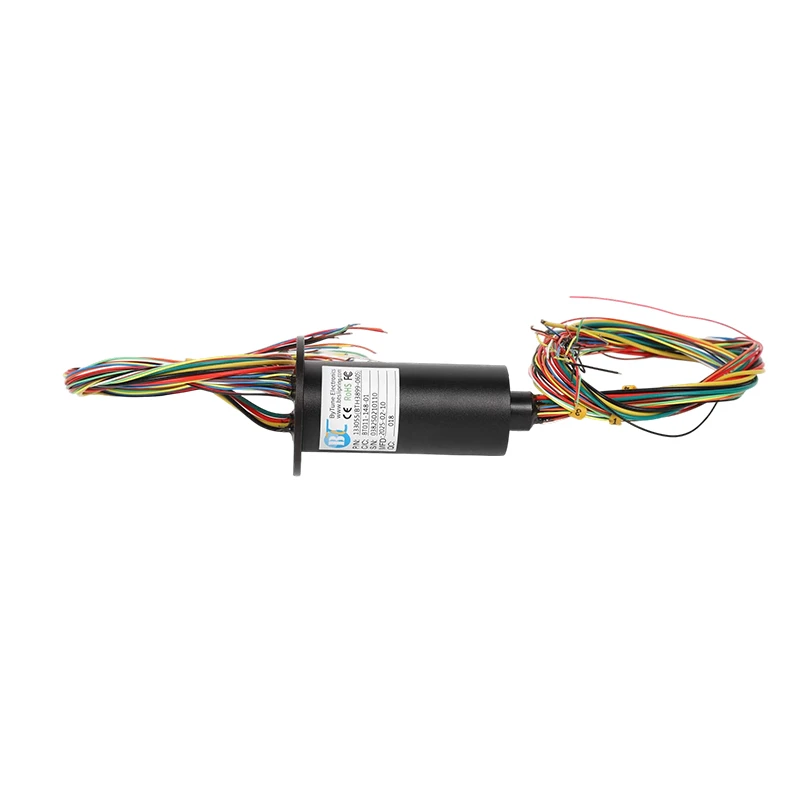

Engineered for advanced multi-signal transmission, this capsule slip ring more than 100 channels (OD54mm) is widely used in automated packaging systems and marine radar arrays. It is designed with precision gold contact technology, integrating 124 gold-plated channels for stable connectivity for complex signal requirements. This includes the power, data, and control signals, etc.
Drawing(mm)
| Picture | Drawing(mm) |
|
|
|
Product Parameters
Mechanical:
|
Working speed |
350rpm |
|
Operating temperature |
-40℃~ +100℃ |
|
Contact material |
Gold to Gold |
|
Bearing |
Steel ball bearing |
|
IP Grade |
IP 54 |
Electrical:
|
Circuit |
77-124 |
|
Current |
2A or combined rings to be higher current |
|
Voltage |
≤240V |
|
Dielectric strength |
≥500V@50Hz between each circuit |
|
Insulation resistance |
500MΩ@ 500VDC |
|
Electric noise |
≤7mΩ |
|
Lead wire size |
28AWG, UL ,color Teflon, silver or tin plated |
|
Lead wire length |
200mm |
Customization is available, OEM&ODM is welcome! Further information, please feel free to contact our sales.
Application Scenario
The capsule slip ring more than 100 channels is widely used. It transmits current and signals among the fixed power supply, rotating mechanism and control system of the equipment, such as:
Cranes
Wind Turbines
Robotics
