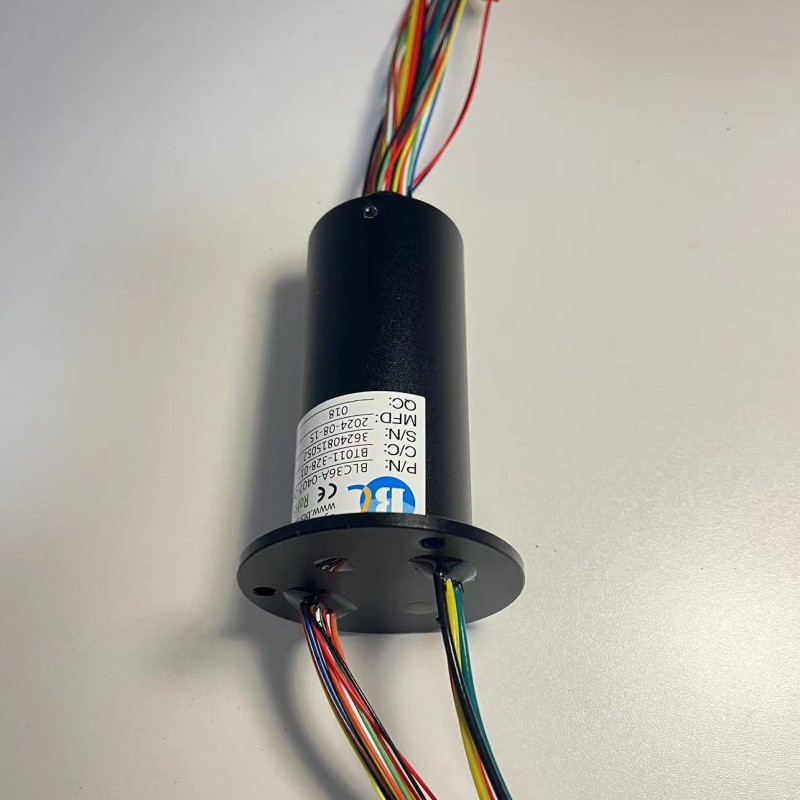

This multichannel capsule slip ring compact design is mainly used in 360°rotating platforms and radar systems. Its compact structure integrates 76 wires with gold-plated contacts, ensuring stable transmission of power, signals, and even image data. Additionally, it supports optional IP54-IP65+ protection, enabling reliable operation in harsh environments such as marine applications and industrial workshops.
Features
Efficient transmission
The multichannel capsule slip ring compact design uses gold and silver brushes and silver-plated conductive rings. These highly conductive materials can greatly increase the speed of data transmission and reduce signal loss.
Easy installation
It is a miniature slip ring that can be installed in a small space of equipment, such as a monitoring system or a CT scanner, with its compact size.
Low noise
We strictly control the size and surface smoothness of the slip ring components. The ring and brush fit tightly and smoothly, reducing vibration and friction noise caused by improper fit.
Drawing
Parameters
Mechanical:
|
Working speed |
500rpm (typically) |
|
Limited speed |
800rpm |
|
Operating temperature |
-40℃ ~ +100℃ |
|
Contact material |
Gold to Gold |
|
Bearing |
Steel ball bearing |
|
IP Grade |
IP 54,IP56,IP65 or higher |
Electrical:
|
Circuit |
25-56 |
|
Current |
2A or combined rings to be higher current |
|
Voltage |
≥240V |
|
Dielectric strength |
500V@50Hz between each circuit |
|
Insulation resistance |
500MΩ@ 500VDC |
|
Electric noise |
≤7mΩ |
|
Lead wire size |
28AWG, UL ,color Teflon, silver or tin plated |
|
Lead wire length |
300mm |
|
Others |
Compatible with Video signal, RS485/232, Ethernet |
