USB3.0 Signal Through Bore Slip Rings

● ID 25.4mm, OD 86 mm, USB 3.0 and power line
● Low noise, no interference
● For Advertising Displays, Rotary Measurement Platforms, etc...

Send Inquiry

The USB3.0 signal through bore slip rings are specifically designed for USB 3.0 signal and power transmission, particularly in systems such as advertising displays and rotary measurement platforms. With a 25.4 mm ID/86 mm OD, they support a quick installation into your devices. Additionally, these slip rings feature 2 circuits supporting a maximum bandwidth of 5.0 Gbps (500MB/s), equipped with a USB 3.0 ring lead connector, while their other 2 wires support 5A current transmission.

Features

High-Speed Transmission

By using USB3.0 blue data cables and connectors, the USB3.0 signal through bore slip rings can connect to devices faster and provide higher signal transmission rates, much higher than USB2.0 versions.

Durable Contacts

The slip rings are designed with low-wear fiber brush contacts, and are wear-resistant and oxidation-resistant through gold-plated or tin-plated contact materials. It does not require lubrication during use and achieves stable signal transmission with little interference.

water&dust-Resistant

These slip rings feature a highly sealed structure with anodized aluminum housing, achieving an IP54 protection rating. They can be used outdoors under -40°C to +100°C.

Quick Installation

Our slip rings support a variety of mounting methods, such as hollow shafts and flanges, and can be installed quickly. In addition, it can also be customized according to the space constraints of different application environments.

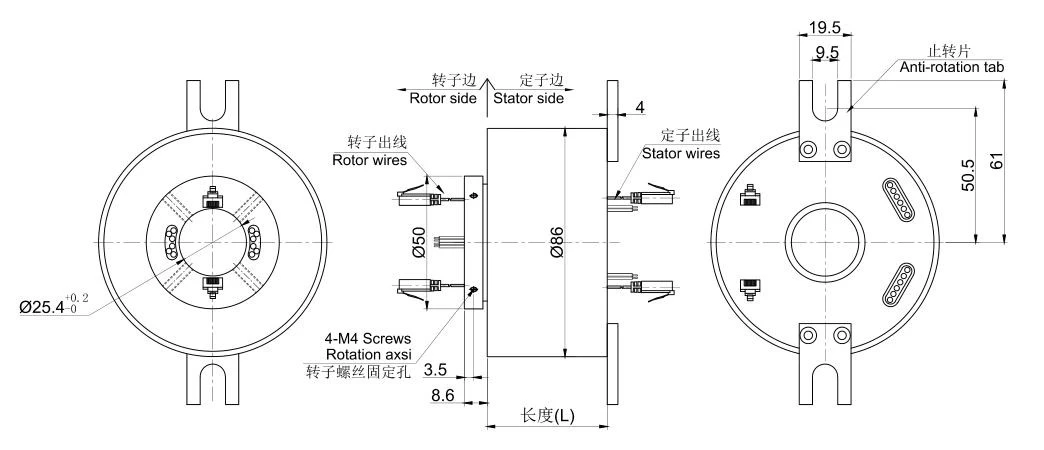

Slip Ring Design Drawings

Parameters

Mechanical

Working speed	1000rpm
Operating temperature	-40℃~ +100℃
Contact material	Precious metal
IP Grade	IP 54

Electrical

Circuit	2 for power, 2 for signal (other circuits optional)
Current	5A,10A,20Aor combined rings to get higher current
Voltage	380V,600V optional
Dielectric strength	≥1000V@50Hz between each circuit
Insulation resistance	1000MΩ@ 500VDC
Electric noise	≤7mΩ
Lead wire size	22AWG, 17AWG,14AWG, UL, color Teflon, silver or tin plated
Lead wire length	300mm

FAQ

Q: What are the technical advantages of USB signal through-hole slip rings?

A: This through-hole slip ring uses precious metal electrical contact materials and precise manufacturing processes, and can withstand long-term high-frequency rotation and wear. It also supports high-speed USB data transmission, reducing electromagnetic interference and signal crosstalk during transmission.

Q: How to choose a suitable through-hole slip ring?

A: When choosing a suitable through-hole slip ring, you need to consider factors such as the device to be connected, signal type, rotation speed, working environment, and installation size.

Q: How to maintain and service this slip ring?

A: (1) Check whether the electrical contact parts of the slip ring are worn or damaged, and replace the worn parts in time.
(2) Keep the surface of the slip ring clean to prevent dust, oil and other impurities from entering the slip ring and affecting signal transmission.
(3) Ensure that the slip ring works within the rated load range to avoid damage to the electrical contact parts due to overload.
