The slip ring with separate rotor and carbon brush has an inner diameter of only 38 mm yet supports current transmission ranging from 5A to 600A. It's used in industrial cable manufacturing equipment requiring high-current transmission, including stranding machines and twisting machines. Additionally, its independent contact structure allows for free customization of channel configurations and easy replacement of individual carbon brush modules. Most importantly, this slip ring is supplied at a highly competitive cost. Contact us for details.
Parameters
Mechanical:
|
Working speed |
50rpm |
|
Operating temperature |
-40℃~ +100℃ |
|
Contact material |
Copper with carbon brushes |
Electrical:
|
Circuit |
as requested |
|
Current |
5A ~600A |
|
Voltage |
≤380V |
|
Dielectric strength |
≥1000V@50Hz between each circuit |
|
Insulation resistance |
1000MΩ@ 500VDC |
|
Electric noise |
≤7mΩ |
|
Connecting way |
Metal thread or Pin |
Application
The slip ring with separate rotor and carbon brush is widely used in these fields, such as:

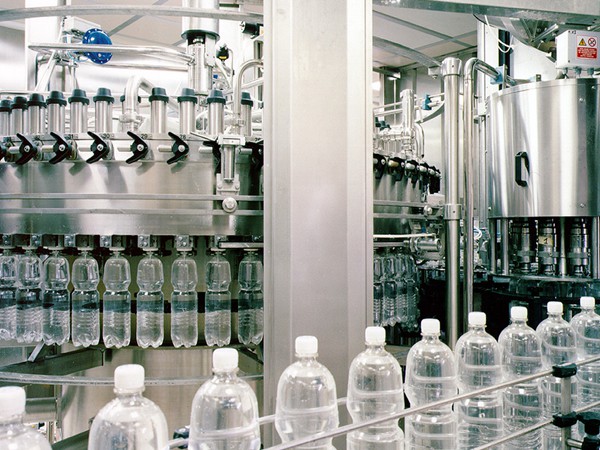

Packaging Machinery
Wind Turbines
Amusement Facilities
Stage Equipment
